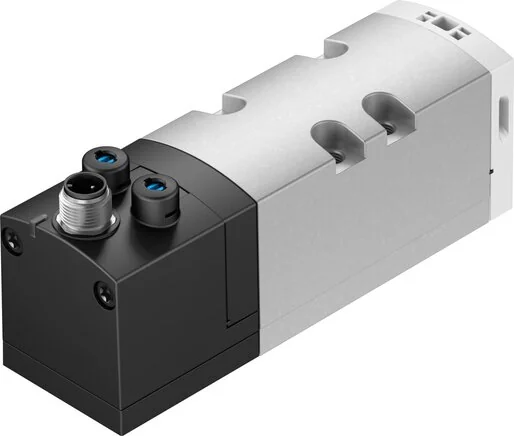

Festo - VSVA-B-P53U-ZD-D1-1R5L-561378 - Solenoid Valve

SKU: festo-vsva-b-p53u-zd-d1-1r5l-561378

Browse all parts
Festo - VSVA-B-P53U-ZD-D1-1R5L-561378 - Solenoid Valve

€328.19€280.50 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€328.19

Brand
Festo
Overlap
positive Überdeckung
Flow Valve
1900
Permission
c UL us - Recognized (OL)
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
on connection plate
Flow Direction
arbitrary
Seals Material
NBR
Valve Function
5/3 ventilated
Screws Material
verzinkt
Build Width (mm)
42
Exhaust Function
über Einzelanschlussplatte
Housing Material
PA
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Relative Humidity
0 - 90 %
Sealing Principle
Soft
Control Air Supply
external
Nominal Width (mm)
11
Construction Set Up
Piston pusher
Protection Category
NEMA 4
Complies To Standard
ISO 5599-1
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Pilot Air Port 12/14
Connection plate Size 1 to ISO 5599-1
Pitch Dimension (mm)
43
Electrical Connection
runde Bauform
Hand Assist Actuation
tentative
Installation Position
arbitrary
Max. Power Input (mA)
72
Shifting Time On (ms)
22
Control Pressure (MPa)
0,3 to 1
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Connection plate Size 1 to ISO 5599-1
Pneumatic Connection 2
Connection plate Size 1 to ISO 5599-1
Pneumatic Connection 3
Connection plate Size 1 to ISO 5599-1
Pneumatic Connection 4
Connection plate Size 1 to ISO 5599-1
Pneumatic Connection 5
Connection plate Size 1 to ISO 5599-1
Shifting Time Off (ms)
65
Medium Temperature (°C)
-5 to 50
Operating Pressure (MPa)
-0,09 to 1,6
Signal Condition Display
LED
Ambient Temperature (°C)
-5 to 50
Coil Characteristic Value
24 V DC: 1,6 W
Corrosion Resistance Class KBK
0 - No corrosion stressing
Permitted Voltage Oscillations
± 10 %
Flow Valve Pneumatically Linked
1300
Exhaust Control Connection 82/84
wahlweise:
Flow Valve Single Connection Plate
1400
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
1400
Max. Negative Test Impulse For 1 Signal
900
Standard Nominal Flow Rate (Standardised To DIN 1343)
1300
EAN
4052568007720
Manufacturer
Festo
