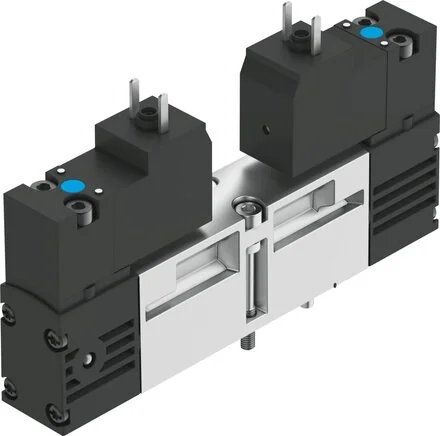

Festo - VSVA-B-P53U-ZH-A2-5C1-547163 - Solenoid Valve

SKU: festo-vsva-b-p53u-zh-a2-5c1-547163

Browse all parts
Festo - VSVA-B-P53U-ZH-A2-5C1-547163 - Solenoid Valve

€244.40€208.89 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€244.40

Brand
Festo
Overlap
positive Überdeckung
Flow Valve
650
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
on connection plate
Flow Direction
Reversible
Seals Material
NBR
Valve Function
5/3 ventilated
Screws Material
verzinkt
Valve Size (mm)
18
Exhaust Function
Can be throttled
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Relative Humidity
0 - 90 %
Sealing Principle
Soft
Control Air Supply
external
Nominal Width (mm)
5
Shifting Time (ms)
20
Construction Set Up
Piston pusher
Protection Category
NEMA 4
Complies To Standard
VDMA 24563
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Electrical Connection
ohne Schutzleiter
Hand Assist Actuation
tentative
Installation Position
arbitrary
Pre-control Interface
acc. to ISO 15218
Shifting Time On (ms)
18
Control Pressure (MPa)
0,3 to 1
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Connection plate Size 18 mm to ISO 15407-1
Pneumatic Connection 2
Connection plate Size 18 mm to ISO 15407-1
Pneumatic Connection 3
Connection plate Size 18 mm to ISO 15407-1
Pneumatic Connection 4
Connection plate Size 18 mm to ISO 15407-1
Pneumatic Connection 5
Connection plate Size 18 mm to ISO 15407-1
Shifting Time Off (ms)
30
Medium Temperature (°C)
-5 to 50
Operating Pressure (MPa)
-0,09 to 1
Signal Condition Display
LED
Ambient Temperature (°C)
-5 to 50
Coil Characteristic Value
12 V DC: 1,8 W
Sound Pressure Level (dB(A))
85
Corrosion Resistance Class KBK
0 - No corrosion stressing
Permitted Voltage Oscillations
-1,5
Flow Valve Pneumatically Linked
450
Exhaust Control Connection 82/84
nicht gefasst nach Norm
Support Air Control Connection 12
Connection plate Size 18 mm to ISO 15407-1
Support Air Control Connection 14
Connection plate Size 18 mm to ISO 15407-1
Flow Valve Single Connection Plate
500
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Tightening Torque Valve Fastening (Nm)
1
Standard Nominal Flow Rate (Standardised To DIN 1343)
450
EAN
4052568186791
Manufacturer
Festo
