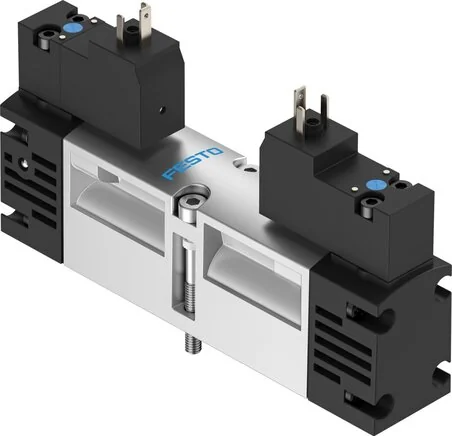

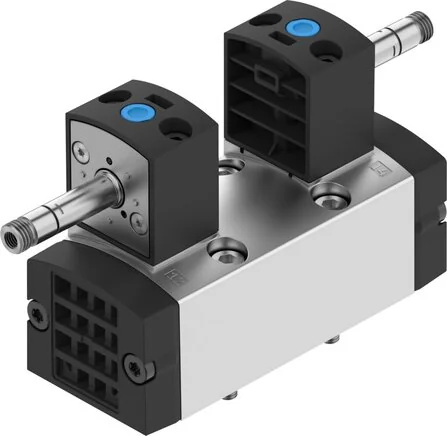

Overlap
positive Überdeckung
Permission
CSA (OL), c UL us - Recognized (OL)
Control Type
pilot operated
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
on connection plate
Flow Direction
Not reversible
Seals Material
FKM, HNBR, NBR
Valve Function
2x3/2 closed monostable
Screws Material
Zinc-plated steel
Exhaust Function
drosselbar, über Drosselplatte, über Einzelanschlussplatte
Housing Material
PA, Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Control Air Supply
external, Internal
Construction Set Up
Piston pusher
Protection Category
IP65, NEMA 4
Material Information
RoHs compliant
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Pilot Air Port 12/14
Connection plate Size 18 mm to ISO 15407-2
Hand Assist Actuation
tentative
Installation Position
arbitrary
LABS (PWIS) Conformity
Plug-in, to ISO 15407-2
Pneumatic Connection 1
Connection plate Size 18 mm to ISO 15407-2
Pneumatic Connection 2
Connection plate Size 18 mm to ISO 15407-2
Pneumatic Connection 3
Connection plate Size 18 mm to ISO 15407-2
Pneumatic Connection 5
Connection plate Size 18 mm to ISO 15407-2
Operating Pressure (bar)
3 to 10
Signal Condition Display
LED
Ambient Temperature (°C)
-5 to 50
Coil Characteristic Value
24 V DC: 1,3 W
Surge Voltage Strength (kV)
2,5
Corrosion Resistance Class KBK
0 - No corrosion stressing
Permitted Voltage Oscillations
± 10 %
Exhaust Control Connection 82/84
Selectively:, Recorded, Not recorded to standard
Nominal Operating Voltage DC (V)
24
Support Air Control Connection 12/14
Connection plate Size 18 mm to ISO 15407-2
Flow Valve Pneumatically Linked (l/min)
400
Flow Valve Single Connection Plate (l/min)
500
Max. Positive Test Impulse At 0 Signal (µs)
1.700
Max. Negative Test Impulse For 1 Signal (µs)
1.200
Information About Operating And Control Medium
Oiled operation possible (required in further operations)
Flow Valve Pneumatically Linked Flow Optimised (l/min)
550
Standard Nominal Flow Rate (Standardised To DIN 1343) (l/min)
400
