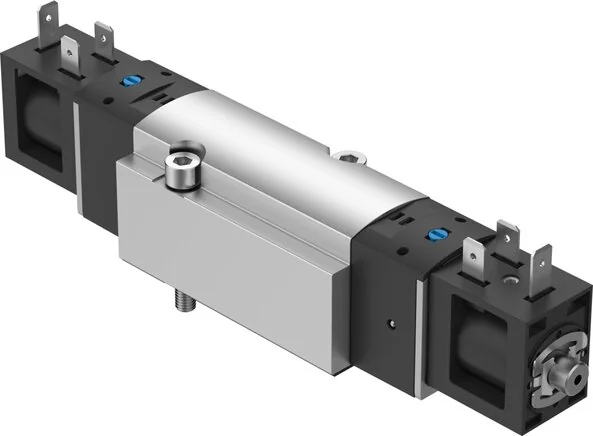

Festo - VSVA-BK-P53E-D-D1-1B2-8166595 - Solenoid Valve

SKU: festo-vsva-bk-p53e-d-d1-1b2-8166595

Browse all parts
Festo - VSVA-BK-P53E-D-D1-1B2-8166595 - Solenoid Valve

€157.75€134.83 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€157.75

Brand
Festo
B-value
0.26
C-value
5,63
Overlap
negative Überdeckung
ISO-Code
157
Flow Valve
1289
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
on connection plate
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
5/3 vented
Screws Material
Zinc-plated steel
Valve Size (mm)
42
Build Width (mm)
38
Exhaust Function
Can be throttled
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Control Air Supply
Internal
Nominal Width (mm)
6,3
Shifting Time (ms)
18,9
Construction Set Up
Kolbenschieber mit Dichtring
Protection Category
acc. to IEC 60529
Complies To Standard
ISO 5599-1
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Pitch Dimension (mm)
43
Electrical Connection
nach Industriestandard (11 mm)
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
12,4
LABS (PWIS) Conformity
VDMA24364-Zone III
Piston Pusher Material
Aluminium wrought alloy
Pneumatic Connection 1
Connection plate Size 1 to ISO 5599-1
Pneumatic Connection 2
Connection plate Size 1 to ISO 5599-1
Pneumatic Connection 3
Connection plate Size 1 to ISO 5599-1
Pneumatic Connection 4
Connection plate Size 1 to ISO 5599-1
Pneumatic Connection 5
Connection plate Size 1 to ISO 5599-1
Shifting Time Off (ms)
37,4
Medium Temperature (°C)
-5 to 50
Operating Pressure (MPa)
0,3 to 0,8
Signal Condition Display
With Accessories
Ambient Temperature (°C)
-5 to 50
Coil Characteristic Value
24 V DC: 3,3 W
Breathing Opening Connection
Not recorded
Corrosion Resistance Class KBK
1 - low corrosion stress
Permitted Voltage Oscillations
± 10 %
Flow Valve Pneumatically Linked
1283
Nominal Operating Voltage DC (V)
24
Flow Valve Single Connection Plate
1289
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
2500
Max. Negative Test Impulse For 1 Signal
1100
Max. Tightening Torque Valve Fastening (Nm)
5
Standard Nominal Flow Rate (Standardised To DIN 1343)
1200
EAN
4052568606060
Manufacturer
Festo
