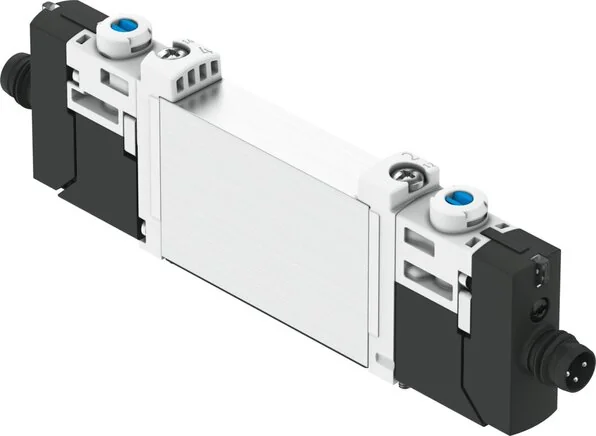

Festo - VUVG-B10-P53C-ZT-F-1R8L-574239 - Solenoid Valve

SKU: festo-vuvg-b10-p53c-zt-f-1r8l-574239

Browse all parts
Festo - VUVG-B10-P53C-ZT-F-1R8L-574239 - Solenoid Valve

€183.47€156.81 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€183.47

Brand
Festo
Overlap
positive Überdeckung
Permission
c UL us - Recognized (OL)
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
on terminal strip
Seals Material
NBR
Vacuum Capable
yes
Valve Function
5/3 closed
Valve Size (mm)
10
Exhaust Function
Can be throttled
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Control Air Supply
external
Nominal Width (mm)
4
Shifting Time (ms)
14
Construction Set Up
Piston pusher
Protection Category
mit Steckdose
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Electrical Connection
Plug
Hand Assist Actuation
Covered
Installation Position
arbitrary
Shifting Time On (ms)
11
Control Pressure (MPa)
0,3 to 0,8
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Shifting Time Off (ms)
30
Medium Temperature (°C)
60
Operating Pressure (MPa)
-0,09 to 1
Ambient Temperature (°C)
-5 to 60
Coil Characteristic Value
24 V DC: 1,0 W
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Permitted Voltage Oscillations
± 10 %
Limits Ambient And Media Temperature
ohne Haltestromabsenkung
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
700
Max. Negative Test Impulse For 1 Signal
900
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Standard Nominal Flow Rate (Standardised To DIN 1343)
200 to 300
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 5 nach ISO 14644-1
EAN
4052568222451
Manufacturer
Festo
