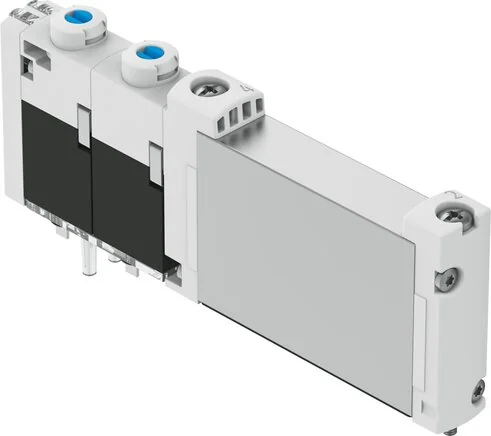

Festo - VUVG-B10-T32U-AZT-F-1T1L-573411 - Solenoid Valve

SKU: festo-vuvg-b10-t32u-azt-f-1t1l-573411

Browse all parts
Festo - VUVG-B10-T32U-AZT-F-1T1L-573411 - Solenoid Valve

€148.50€126.92 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€148.50

Brand
Festo
Overlap
positive Überdeckung
Permission
c UL us - Recognized (OL)
Reset Mode
Pneumatic spring
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
on terminal strip
Seals Material
NBR
Valve Function
2x3/2 open monostable
Valve Size (mm)
10
Exhaust Function
Can be throttled
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Control Air Supply
external
Construction Set Up
Piston pusher
Protection Category
IP67
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Electrical Connection
Via connection plate
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
8
Control Pressure (MPa)
0,15 to 0,8
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Shifting Time Off (ms)
20
Medium Temperature (°C)
-5 to 60
Operating Pressure (MPa)
0,15 to 1
Signal Condition Display
LED
Ambient Temperature (°C)
-5 to 60
Coil Characteristic Value
22 V DC: 1,0 W
Max. Switching Frequency (Hz)
3
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Permitted Voltage Oscillations
± 10 %
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
1600
Max. Negative Test Impulse For 1 Signal
3000
Standard Nominal Flow Rate (Standardised To DIN 1343)
150
EAN
4052568220129
Manufacturer
Festo
