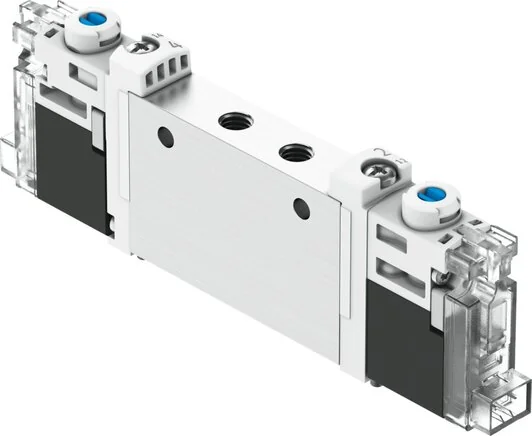

Festo - VUVG-L10-B52-ZT-M7-1H2L-F1A-8164360 - Solenoid Valve

SKU: festo-vuvg-l10-b52-zt-m7-1h2l-f1a-8164360

Browse all parts
Festo - VUVG-L10-B52-ZT-M7-1H2L-F1A-8164360 - Solenoid Valve

€168.21€143.77 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€168.21

Brand
Festo
Overlap
positive Überdeckung
Permission
c UL us - Recognized (OL)
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
With throughway bores
Seals Material
NBR
Vacuum Capable
yes
Valve Function
5/2 bistable
Screws Material
Steel, powder-coated
Valve Size (mm)
10
Exhaust Function
Can be throttled
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Certification Body
UL MH19482
Control Air Supply
external
Nominal Width (mm)
4
Shifting Time (ms)
9
Construction Set Up
Piston pusher
Protection Category
IP40
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Pilot Air Port 12/14
M3
Electrical Connection
Plug
Hand Assist Actuation
Covered
Installation Position
arbitrary
Control Pressure (MPa)
0,15 to 0,8
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
M7
Pneumatic Connection 2
M7
Pneumatic Connection 3
M7
Pneumatic Connection 4
M7
Pneumatic Connection 5
M7
Medium Temperature (°C)
50
Operating Pressure (MPa)
-0,09 to 1
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
60
Coil Characteristic Value
24 V DC: 0,8 W
Corrosion Resistance Class KBK
0 - No corrosion stressing
Permitted Voltage Oscillations
± 10 %
Limits Ambient And Media Temperature
ohne Haltestromabsenkung
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
700
Max. Negative Test Impulse For 1 Signal
900
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Standard Nominal Flow Rate (Standardised To DIN 1343)
370
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 5 nach ISO 14644-1
EAN
4052568612207
Manufacturer
Festo
