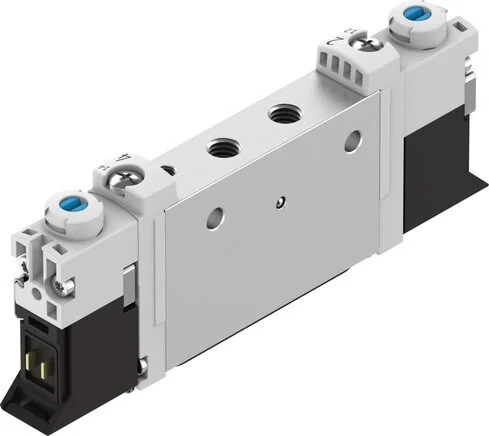

Festo - VUVG-L10-T32U-AT-M5-1P3-566455 - Solenoid Valve

SKU: festo-vuvg-l10-t32u-at-m5-1p3-566455

Browse all parts
Festo - VUVG-L10-T32U-AT-M5-1P3-566455 - Solenoid Valve

€130.06€111.16 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€130.06

Brand
Festo
Overlap
positive Überdeckung
Permission
c UL us - Recognized (OL)
Reset Mode
Pneumatic spring
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
With throughway bores
Seals Material
NBR
Vacuum Capable
no
Valve Function
2x3/2 open monostable
Valve Size (mm)
10
Exhaust Function
Can be throttled
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Control Air Supply
Internal
Nominal Width (mm)
2,7
Construction Set Up
Piston pusher
Protection Category
mit Steckdose
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Electrical Connection
Via electrical connection plate
Hand Assist Actuation
Covered
Installation Position
arbitrary
Shifting Time On (ms)
6
Control Pressure (MPa)
0,15 to 0,8
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
M5
Pneumatic Connection 2
M5
Pneumatic Connection 3
M5
Pneumatic Connection 4
M5
Pneumatic Connection 5
M5
Shifting Time Off (ms)
15
Medium Temperature (°C)
60
Operating Pressure (MPa)
0,15 to 0,8
Ambient Temperature (°C)
60
Coil Characteristic Value
24 V DC: Low current phase 0.3 W, high current phase 1,0 W
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Permitted Voltage Oscillations
± 10 %
Limits Ambient And Media Temperature
ohne Haltestromabsenkung
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
700
Max. Negative Test Impulse For 1 Signal
900
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Standard Nominal Flow Rate (Standardised To DIN 1343)
150
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 5 nach ISO 14644-1
EAN
4052568213664
Manufacturer
Festo
