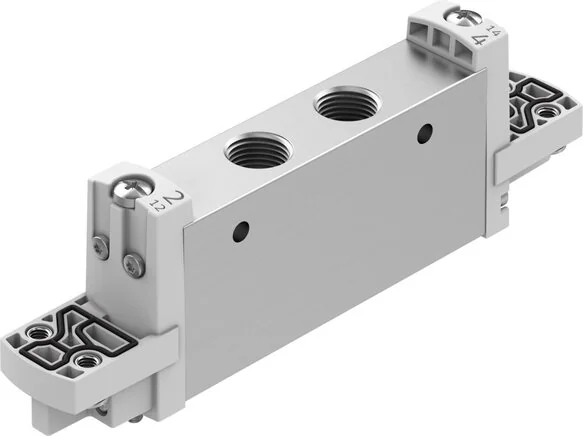

Festo - VUVG-L14-T32U-M-G18-P1-8033527 - Solenoid Valve

SKU: festo-vuvg-l14-t32u-m-g18-p1-8033527

Browse all parts
Festo - VUVG-L14-T32U-M-G18-P1-8033527 - Solenoid Valve

€110.13€94.13 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€110.13

Brand
Festo
Overlap
positive Überdeckung
Permission
c UL us - Recognized (OL)
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
With throughway bores
Seals Material
NBR
Vacuum Capable
no
Valve Function
2x3/2 open monostable
Valve Size (mm)
14
Exhaust Function
Can be throttled
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Certification Body
UL MH19482
Control Air Supply
Internal
Nominal Width (mm)
4,3
Construction Set Up
Piston pusher
Protection Category
mit elektrischem Vorsteuerventil und Steckdose
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Electrical Connection
über elektrisches Vorsteuerventil
Installation Position
arbitrary
Pre-control Interface
acc. to ISO 15218
Shifting Time On (ms)
14
Control Pressure (MPa)
0,35 to 0,8
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 2
G1/8
Pneumatic Connection 4
G1/8
Pneumatic Connection 5
G1/8
Shifting Time Off (ms)
13
Medium Temperature (°C)
60
Operating Pressure (MPa)
0,3 to 0,8
Ambient Temperature (°C)
60
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
700
Max. Negative Test Impulse For 1 Signal
900
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Standard Nominal Flow Rate (Standardised To DIN 1343)
480 to 500
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 5 nach ISO 14644-1
EAN
4052568428907
Manufacturer
Festo
