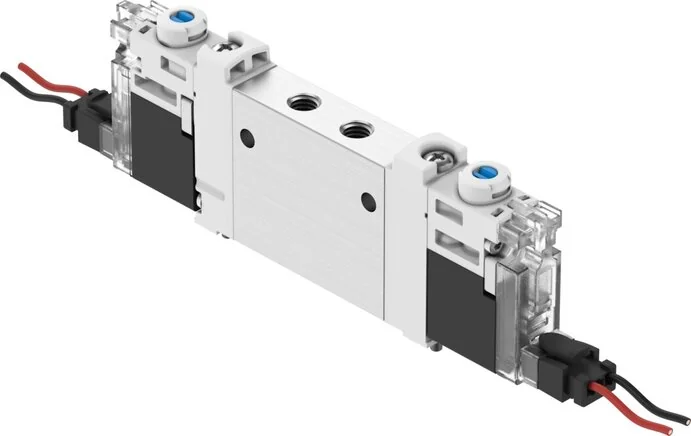

Festo - VUVG-LK10-T32C-AT-M7-1H2L-W1-S-589283 - Solenoid Valve

SKU: festo-vuvg-lk10-t32c-at-m7-1h2l-w1-s-589283

Browse all parts
Festo - VUVG-LK10-T32C-AT-M7-1H2L-W1-S-589283 - Solenoid Valve

€119.71€102.32 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€119.71

Brand
Festo
Overlap
positive Überdeckung
Permission
c UL us - Recognized (OL)
Reset Mode
Pneumatic spring
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
2x3/2 closed monostable
Valve Size (mm)
10
Exhaust Function
Can be throttled
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 1 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Certification Body
UL MH19482
Control Air Supply
Internal
Construction Set Up
Kolbenschieber mit Dichtring
Protection Category
IP40
Oscillation Strength
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6
Electrical Connection
Open end
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
12
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 2
M7
Pneumatic Connection 4
M7
Shifting Time Off (ms)
14
Medium Temperature (°C)
-5 to 50
Operating Pressure (MPa)
0,15 to 0,7
Signal Condition Display
LED
Ambient Temperature (°C)
-5 to 50
Coil Characteristic Value
24 V DC: 0,8 W
Max. Switching Frequency (Hz)
2
Corrosion Resistance Class KBK
0 - No corrosion stressing
Permitted Voltage Oscillations
± 10 %
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
1600
Max. Negative Test Impulse For 1 Signal
3000
Standard Nominal Flow Rate (Standardised To DIN 1343)
280
EAN
4052568392352
Manufacturer
Festo
