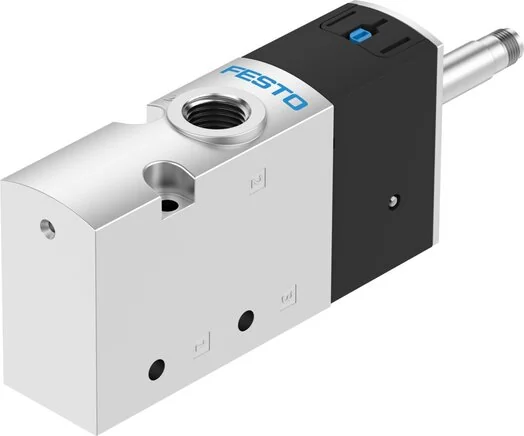

Festo - VUVS-L25-M32U-MD-G14-FN-8192993 - Solenoid Valve

SKU: festo-vuvs-l25-m32u-md-g14-fn-8192993

Browse all parts
Festo - VUVS-L25-M32U-MD-G14-FN-8192993 - Solenoid Valve

€103.43€88.40 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€103.43

Brand
Festo
B-value
0.3
C-value
4,3
Overlap
positive Überdeckung
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
3/2 open monostable
Screws Material
Zinc-plated steel
Valve Size (mm)
26,5
Exhaust Function
Can be throttled
Housing Material
lackiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Control Air Supply
Internal
Construction Set Up
Piston pusher
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Hand Assist Actuation
Ratcheting
Installation Position
arbitrary
Shifting Time On (ms)
30
Control Pressure (MPa)
0,25 to 0,8
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Piston Pusher Material
Aluminium wrought alloy
Pneumatic Connection 1
G1/4
Pneumatic Connection 2
G1/4
Pneumatic Connection 3
G1/4
Shifting Time Off (ms)
127
Medium Temperature (°C)
60
Operating Pressure (MPa)
0,25 to 0,8
Ambient Temperature (°C)
-10 to 60
Breathing Opening Connection
Not recorded
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
1000
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 6 nach ISO 14644-1
EAN
4052568642105
Manufacturer
Festo
