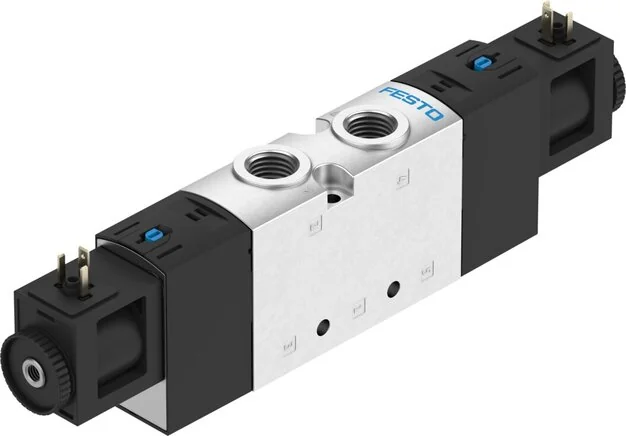

Festo - VUVS-L25-P53E-MZD-G14-F8-1B2-575542 - Solenoid Valve

SKU: festo-vuvs-l25-p53e-mzd-g14-f8-1b2-575542

Browse all parts
Festo - VUVS-L25-P53E-MZD-G14-F8-1B2-575542 - Solenoid Valve

€192.31€164.37 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€192.31

Brand
Festo
B-value
0.4
C-value
4,3
Overlap
positive Überdeckung
Permission
c UL us - Recognized (OL)
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
With throughway bores
Flow Direction
Reversible
Seals Material
NBR
Valve Function
5/3 vented
Screws Material
Zinc-plated steel
Valve Size (mm)
26,5
Exhaust Function
Can be throttled
Housing Material
lackiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Certification Body
DNVGL-TAA000011J
Control Air Supply
external
Nominal Width (mm)
6,3
Shifting Time (ms)
25
Construction Set Up
Piston pusher
Protection Category
acc. to IEC 60529
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Electrical Connection
nach Industriestandard (11 mm)
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
14
Control Pressure (MPa)
0,25 to 1
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Piston Pusher Material
Aluminium wrought alloy
Pneumatic Connection 1
G1/4
Pneumatic Connection 2
G1/4
Pneumatic Connection 3
G1/4
Pneumatic Connection 4
G1/4
Pneumatic Connection 5
G1/4
Shifting Time Off (ms)
48
Maritime Classification
see Certificate
Medium Temperature (°C)
60
Operating Pressure (MPa)
-0,09 to 1
Ambient Temperature (°C)
-10 to 60
Coil Characteristic Value
24 V DC: 3,3 W
Control Air 12 Connection
M5
Control Air 14 Connection
M5
Breathing Opening Connection
Not recorded
Exhaust Control Connection 82
M5
Exhaust Control Connection 84
M5
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Permitted Voltage Oscillations
± 10 %
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
2000
Max. Negative Test Impulse For 1 Signal
3600
Standard Nominal Flow Rate (Standardised To DIN 1343)
1000
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 6 nach ISO 14644-1
EAN
4052568260996
Manufacturer
Festo
