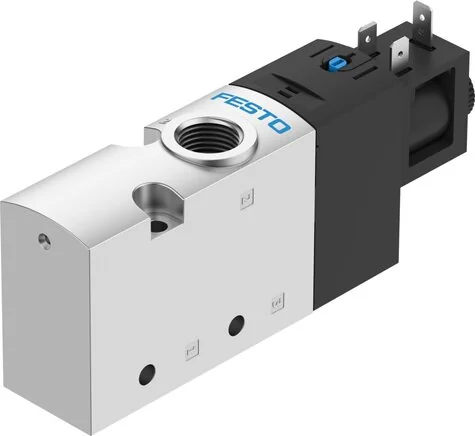

Festo - VUVS-L30-M32C-MZD-G38-F8-1B2-575575 - Solenoid Valve

SKU: festo-vuvs-l30-m32c-mzd-g38-f8-1b2-575575

Browse all parts
Festo - VUVS-L30-M32C-MZD-G38-F8-1B2-575575 - Solenoid Valve

€129.54€110.72 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€129.54

Brand
Festo
B-value
0.3
C-value
9,9
Overlap
positive Überdeckung
Permission
c UL us - Recognized (OL)
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
With throughway bores
Flow Direction
Reversible
Seals Material
NBR
Valve Function
3/2 closed monostable
Screws Material
Nickel-plated steel
Valve Size (mm)
31,0
Exhaust Function
Can be throttled
Housing Material
lackiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Certification Body
DNVGL-TAA000011J
Control Air Supply
external
Nominal Width (mm)
9,4
Construction Set Up
Piston pusher
Protection Category
acc. to IEC 60529
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Electrical Connection
nach Industriestandard (11 mm)
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
16
Control Pressure (MPa)
0,25 to 1
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Piston Pusher Material
Aluminium wrought alloy
Pneumatic Connection 1
G3/8
Pneumatic Connection 2
G3/8
Pneumatic Connection 3
G3/8
Shifting Time Off (ms)
58
Maritime Classification
see Certificate
Medium Temperature (°C)
60
Operating Pressure (MPa)
-0,09 to 1
Ambient Temperature (°C)
-10 to 60
Coil Characteristic Value
24 V DC: 3,3 W
Control Air 12 Connection
G1/8
Breathing Opening Connection
Not recorded
Exhaust Control Connection 82
M5
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Permitted Voltage Oscillations
± 10 %
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
2000
Max. Negative Test Impulse For 1 Signal
3600
Standard Nominal Flow Rate (Standardised To DIN 1343)
2300
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 6 nach ISO 14644-1
EAN
4052568261122
Manufacturer
Festo
