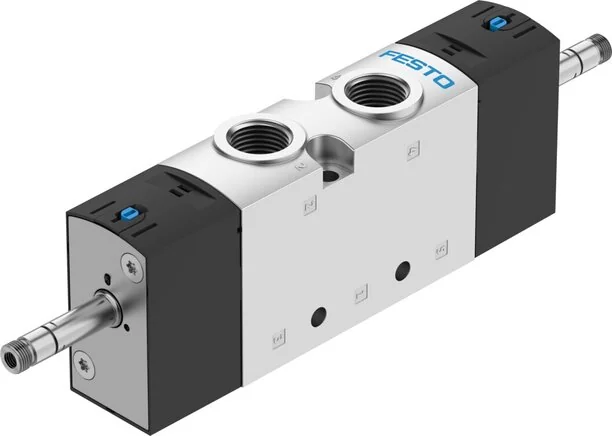

Festo - VUVS-L30-P53E-MD-N38-F8-575655 - Solenoid Valve

SKU: festo-vuvs-l30-p53e-md-n38-f8-575655

Browse all parts
Festo - VUVS-L30-P53E-MD-N38-F8-575655 - Solenoid Valve

€175.04€149.61 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€175.04

Brand
Festo
B-value
0.4
C-value
7,1
Overlap
positive Überdeckung
Permission
c UL us - Recognized (OL)
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
5/3 vented
Screws Material
Nickel-plated steel
Valve Size (mm)
31,0
Exhaust Function
Can be throttled
Housing Material
lackiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Certification Body
DNVGL-TAA000011J
Control Air Supply
Internal
Nominal Width (mm)
8,1
Shifting Time (ms)
36
Construction Set Up
Piston pusher
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
20
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Piston Pusher Material
Aluminium wrought alloy
Pneumatic Connection 1
3/8 NPT
Pneumatic Connection 2
3/8 NPT
Pneumatic Connection 3
3/8 NPT
Pneumatic Connection 4
3/8 NPT
Pneumatic Connection 5
3/8 NPT
Shifting Time Off (ms)
74
Maritime Classification
see Certificate
Medium Temperature (°C)
60
Operating Pressure (MPa)
0,25 to 1
Ambient Temperature (°C)
-10 to 60
Breathing Opening Connection
Not recorded
Exhaust Control Connection 82
10-32 UNF-2B
Exhaust Control Connection 84
10-32 UNF-2B
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
2000
Max. Negative Test Impulse For 1 Signal
3600
Standard Nominal Flow Rate (Standardised To DIN 1343)
1600
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 6 nach ISO 14644-1
EAN
4052568378110
Manufacturer
Festo
