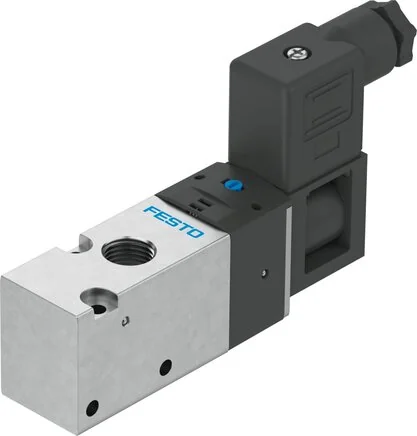

Festo - VUVS-LK25-M32C-AD-G14-1B2+GL-S-8060304 - Solenoid Valve

SKU: festo-vuvs-lk25-m32c-ad-g14-1b2-gl-s-8060304

Browse all parts
Festo - VUVS-LK25-M32C-AD-G14-1B2+GL-S-8060304 - Solenoid Valve

€91.19€77.94 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€91.19

Brand
Festo
B-value
0.45
C-value
3,86
Overlap
positive Überdeckung
Reset Mode
Pneumatic spring
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
3/2 closed monostable
Valve Size (mm)
26,5
Exhaust Function
Can be throttled
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 1 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Control Air Supply
Internal
Nominal Width (mm)
6,7
Cable Diameter (mm)
6 to 8
Construction Set Up
Piston pusher
Protection Category
acc. to IEC 60529
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Electrical Connection
Screw clamp
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
16
LABS (PWIS) Conformity
VDMA24364-Zone III
Piston Pusher Material
Aluminium wrought alloy
Pneumatic Connection 1
G1/4
Pneumatic Connection 2
G1/4
Pneumatic Connection 3
G1/4
Shifting Time Off (ms)
20
Medium Temperature (°C)
-5 to 50
Operating Pressure (MPa)
0,15 to 0,8
Ambient Temperature (°C)
-5 to 50
Coil Characteristic Value
24 V DC: 3,3 W
Breathing Opening Connection
Not recorded
Corrosion Resistance Class KBK
1 - low corrosion stress
Permitted Voltage Oscillations
± 10 %
Conductor - Nominal Cross-section
0,5 to 1,5
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
2500
Max. Negative Test Impulse For 1 Signal
1100
Standard Nominal Flow Rate (Standardised To DIN 1343)
1000
EAN
4052568435622
Manufacturer
Festo
