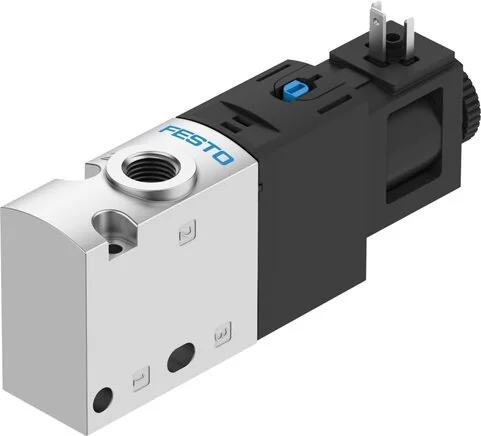

Festo - VUVS-LT20-M32C-MZD-G18-F7-1C1-577512 - Solenoid Valve

SKU: festo-vuvs-lt20-m32c-mzd-g18-f7-1c1-577512

Browse all parts
Festo - VUVS-LT20-M32C-MZD-G18-F7-1C1-577512 - Solenoid Valve

€109.22€93.35 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€109.22

Brand
Festo
B-value
0.39
C-value
2,3
Overlap
negative Überdeckung
Permission
c UL us - Recognized (OL)
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
TPE-U(PU)
Valve Function
3/2 closed monostable
Screws Material
Zinc-plated steel
Valve Size (mm)
21,0
Exhaust Function
Can be throttled
Housing Material
lackiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Control Air Supply
external
Nominal Width (mm)
5,2
Construction Set Up
Plate seat
Protection Category
acc. to IEC 60529
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Electrical Connection
nach EN 175301-803
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
9
Control Pressure (MPa)
0,25 to 1
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 2
G1/8
Pneumatic Connection 3
G1/8
Shifting Time Off (ms)
23
Medium Temperature (°C)
60
Operating Pressure (MPa)
-0,09 to 1
Ambient Temperature (°C)
-5 to 60
Coil Characteristic Value
24 V DC: 2,6 W
Control Air 12 Connection
M5
Breathing Opening Connection
Not recorded
Exhaust Control Connection 82
M5
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Permitted Voltage Oscillations
± 10 %
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
1900
Max. Negative Test Impulse For 1 Signal
2700
Standard Nominal Flow Rate (Standardised To DIN 1343)
600
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 6 nach ISO 14644-1
EAN
4052568382117
Manufacturer
Festo
