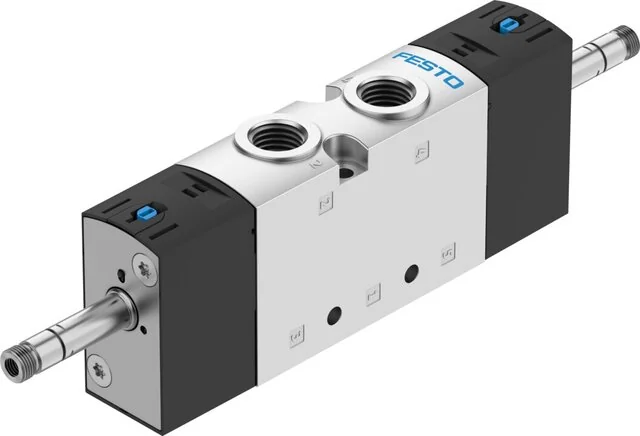

Festo - VUVS-LT25-T32C-MD-N14-F8-8035224 - Solenoid Valve

SKU: festo-vuvs-lt25-t32c-md-n14-f8-8035224

Browse all parts
Festo - VUVS-LT25-T32C-MD-N14-F8-8035224 - Solenoid Valve

€145.62€124.46 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€145.62

Brand
Festo
B-value
0.4
C-value
4,5
Overlap
negative Überdeckung
Permission
c UL us - Recognized (OL)
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
TPE-U(PU)
Valve Function
2x3/2 closed monostable
Screws Material
Zinc-plated steel
Valve Size (mm)
26,5
Exhaust Function
Can be throttled
Housing Material
lackiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Control Air Supply
Internal
Nominal Width (mm)
6,9
Construction Set Up
Plate seat
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
10
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
1/4 NPT
Pneumatic Connection 2
1/4 NPT
Pneumatic Connection 3
1/4 NPT
Pneumatic Connection 4
1/4 NPT
Pneumatic Connection 5
1/4 NPT
Shifting Time Off (ms)
25
Medium Temperature (°C)
60
Operating Pressure (MPa)
0,25 to 1
Ambient Temperature (°C)
-5 to 60
Coil Characteristic Value
See solenoid coil, order separately
Breathing Opening Connection
Not recorded
Exhaust Control Connection 82
10-32 UNF-2B
Exhaust Control Connection 84
10-32 UNF-2B
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
2000
Max. Negative Test Impulse For 1 Signal
3600
Standard Nominal Flow Rate (Standardised To DIN 1343)
1000
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 6 nach ISO 14644-1
EAN
4052568429331
Manufacturer
Festo
