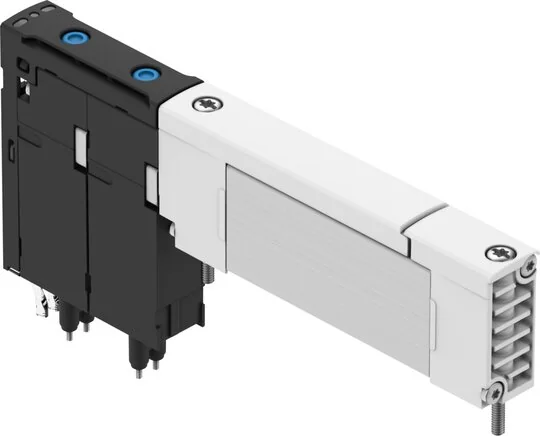

Festo - VUVX-BK10-T32U-MZH-F-1T1L-8187063 - Solenoid Valve

SKU: festo-vuvx-bk10-t32u-mzh-f-1t1l-8187063

Browse all parts
Festo - VUVX-BK10-T32U-MZH-F-1T1L-8187063 - Solenoid Valve

€135.25€115.60 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€135.25

Brand
Festo
B-value
0.41
C-value
2,02
Overlap
negative Überdeckung
Reset Mode
Mechanical spring
Width (mm)
10,35
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Control Medium
Inerte Gase
Fastening Type
on connection plate
Flow Direction
Reversible
Seals Material
HNBR
Vacuum Capable
no
Valve Function
2x3/2 open monostable
Screws Material
Stainless steel
Spring Material
High-alloyed stainless steels
Valve Size (mm)
10
Exhaust Function
Can be throttled
Housing Material
Aluminium-Knetlegierung, eloxiert
Operating Medium
Inerte Gase
Shock Resistance
Shock test with degree of severity 1 to FN 942017-5 and EN 60068-2-27
Relative Humidity
5 - 95 %
Sealing Principle
Soft
Control Air Supply
external
Food Compatibility
NSF H1
Nominal Width (mm)
3,6
Construction Set Up
Kolbenschieber mit Dichtring
Protection Category
IP65
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Pilot Air Port 12/14
Connection plate
Electrical Connection
Plug-in
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
14
Control Pressure (MPa)
0,2 to 0,7
Dynamic Seals Material
HNBR
LABS (PWIS) Conformity
VDMA24364-Zone III
Piston Pusher Material
POM
Pneumatic Connection 1
Connection plate
Pneumatic Connection 2
Connection plate
Pneumatic Connection 3
Connection plate
Pneumatic Connection 4
Connection plate
Pneumatic Connection 5
Connection plate
Shifting Time Off (ms)
17
Medium Temperature (°C)
-5 to 50
Operating Pressure (MPa)
0 to 0,7
Signal Condition Display
yes
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
-20 to 70
Coil Characteristic Value
24 V DC: 0,35 W
Max. Switching Frequency (Hz)
3
Corrosion Resistance Class KBK
1 - low corrosion stress
Permitted Voltage Oscillations
± 10 %
Exhaust Control Connection 82/84
Connection plate
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
1400
Max. Negative Test Impulse For 1 Signal
800
Max. Tightening Torque Valve Fastening (Nm)
0,345
Nominal Flow Rate Standardised According To ISO 8778
555
Nominal Flow Rate Standardised To ISO 8778 Exhaust 2-3
545
EAN
4052568637958
Manufacturer
Festo
