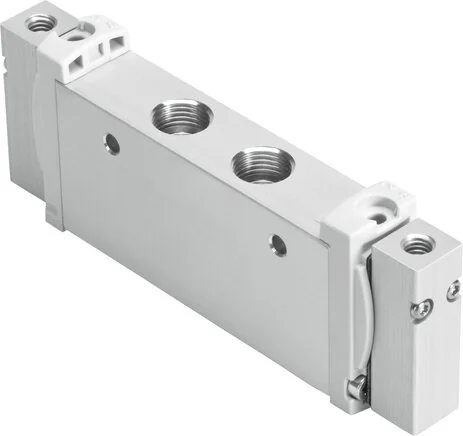

Festo - VUWG-L14-P53E-G18-573835 - Pneumatic Valve

SKU: festo-vuwg-l14-p53e-g18-573835

Browse all parts
Festo - VUWG-L14-P53E-G18-573835 - Pneumatic Valve

€153.09€130.85 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€153.09

Brand
Festo
Overlap
positive Überdeckung
Reset Mode
Mechanical spring
Control Type
Direct
Material Note
RoHs compliant
Actuation Type
pneumatic
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
With throughway bores
Flow Direction
Reversible
Seals Material
NBR
Vacuum Capable
yes
Valve Function
5/3 vented
Valve Size (mm)
14
Exhaust Function
Can be throttled
Housing Material
eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Sealing Principle
Soft
Shifting Time (ms)
16
Construction Set Up
Piston pusher
Pitch Dimension (mm)
16
Hand Assist Actuation
None
Installation Position
arbitrary
Shifting Time On (ms)
8
Control Pressure (bar)
3 to 10
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 2
G1/8
Pneumatic Connection 3
G1/8
Pneumatic Connection 4
G1/8
Pneumatic Connection 5
G1/8
Shifting Time Off (ms)
30
Medium Temperature (°C)
50
Operating Pressure (bar)
-0.9 to 10
Ambient Temperature (°C)
-5 to 60
Control Air 12 Connection
M5
Control Air 14 Connection
M5
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
600
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 5 nach ISO 14644-1
EAN
4052568221225
Manufacturer
Festo
