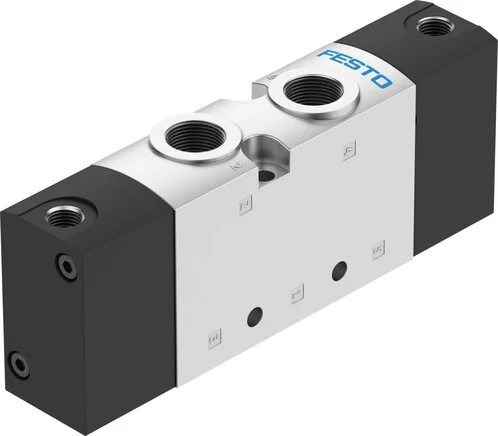

Festo - VUWS-LT30-T32C-M-N38-8036730 - Pneumatic Valve

SKU: festo-vuws-lt30-t32c-m-n38-8036730

Browse all parts
Festo - VUWS-LT30-T32C-M-N38-8036730 - Pneumatic Valve

€109.25€93.38 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€109.25

Brand
Festo
Overlap
negative Überdeckung
Permission
c UL us - Recognized (OL)
Reset Mode
Mechanical spring
Control Type
Direct
Material Note
RoHs compliant
Actuation Type
pneumatic
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
TPE-U(PU)
Valve Function
2x3/2 closed monostable
Screws Material
Zinc-plated steel
Valve Size (mm)
31,0
Exhaust Function
Can be throttled
Housing Material
Aluminium-Druckguss, lackiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Sealing Principle
Soft
Control Air Supply
Internal
Nominal Width (mm)
7,9
Construction Set Up
Plate seat
Hand Assist Actuation
None
Installation Position
arbitrary
Shifting Time On (ms)
12
Control Pressure (MPa)
0,25 to 1
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Piston Pusher Material
POM
Pneumatic Connection 1
3/8 NPT
Pneumatic Connection 2
3/8 NPT
Pneumatic Connection 3
3/8 NPT
Pneumatic Connection 4
3/8 NPT
Pneumatic Connection 5
3/8 NPT
Shifting Time Off (ms)
37
Medium Temperature (°C)
60
Operating Pressure (MPa)
0,1 to 1
Ambient Temperature (°C)
-10 to 60
Control Air 12 Connection
1/8 NPT
Control Air 14 Connection
1/8 NPT
Breathing Opening Connection
Not recorded
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
1600
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 6 nach ISO 14644-1
EAN
4052568430047
Manufacturer
Festo
