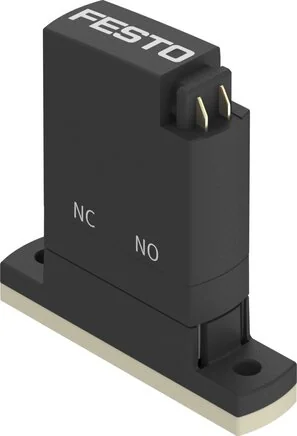

Festo - VYKA-F7-M22C-12-PF-5YQ7-8170086 - Media Separated Solenoid Valve

SKU: festo-vyka-f7-m22c-12-pf-5yq7-8170086

Browse all parts
Festo - VYKA-F7-M22C-12-PF-5YQ7-8170086 - Media Separated Solenoid Valve

€157.76€134.84 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€157.76

Brand
Festo
Size
7
Medium
Gasförmige Medien
Flow Kv
0,018
Reset Mode
Mechanical spring
Control Type
Direct
Material Note
RoHs compliant
Power-on Time
Hinweise zum Betrieb der Magnetventile beachten.
Actuation Type
Electrical
Fastening Type
mit Durchgangsbohrung für Schraube M2
Flow Direction
Reversible with limitations
Seals Material
FFPM
Valve Function
2/2 closed monostable
Internal Volume
24 µl Ventil mit fluidischen Anschlüssen
Fluid Connection
flange
Housing Material
PPA reinforced
Sealing Principle
Soft
Diaphragm Material
FFPM
Nominal Width (mm)
1,2
Construction Set Up
Wippenventil mit Membrandichtung
Protection Category
IP40
Burst Pressure (MPa)
2,3
Pitch Dimension (mm)
7,5
Hand Assist Actuation
None
Installation Position
arbitrary
Medium Pressure (MPa)
-0.05 to 0.2
LABS (PWIS) Conformity
VDMA24364-Zone III
Ambient Temperature (°C)
15 to 50
Bearing Temperature (°C)
-20 to 70
Coil Characteristic Value
12 - 26 V DC: Niederstromphase 0,06 W, Hochstromphase 2,2 W
Insulation Material Class
B
Pressure Difference (MPa)
0,2
Max. Switching Frequency (Hz)
6
Corrosion Resistance Class KBK
0 - No corrosion stressing
Operating Voltage Range DC (V)
12 to 26
Permitted Voltage Oscillations
± 10 %
Electrical Power Consumption (W)
3,5
From Medium Contacting Materials
PEEK
Shifting Time On Liquid Media (ms)
9
Switching Time On Gaseous Media (ms)
9
Information About Protection Category
In mounted condition
Medium Temperature Liquid Media (°C)
15 to 50
Medium Temperature Gaseous Media (°C)
15 to 50
Electrical Connection 1, Connection Type
socket / container / ….
Electrical Connection 1, Connection Pattern
997312
Information About Operating Voltage Range DC
mit elektrischer Anschlussplatte VAVE-K1-a
Electrical Connection 1, Connection Technology
Anschlussbild Q7
Electrical Connection 1, Number Of Pins / Wires
2
Water Flow Rate At Max. Operating Pressure (l/min)
0,45
Standard Nominal Flow Rate (Standardised To DIN 1343)
10
EAN
4052568962302
Manufacturer
Festo
