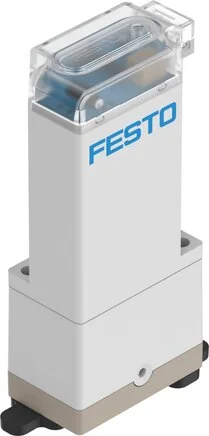

Festo - VYKC-F16-M22C-16-PE-H2R-8172715 - Media Separated Solenoid Valve

SKU: festo-vykc-f16-m22c-16-pe-h2r-8172715

Browse all parts
Festo - VYKC-F16-M22C-16-PE-H2R-8172715 - Media Separated Solenoid Valve

€104.75€89.53 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€104.75

Brand
Festo
Size
16
Medium
Gasförmige Medien
Flow Kv
0,046
Permission
RCM mark
Reset Mode
Mechanical spring
Control Type
Direct
Material Note
RoHs compliant
Power-on Time
Hinweise zum Betrieb der Magnetventile beachten.
Total Leakage
0,004
Actuation Type
Electrical
Fastening Type
mit Durchgangsbohrung für Schraube M2,5
Flow Direction
Reversible
Seals Material
EPDM
Valve Function
2/2 closed monostable
Internal Volume
89 µl Fluidraum Ventil
Fluid Connection
flange
Housing Material
PEEK
Sealing Principle
Soft
Diaphragm Material
EPDM
Food Compatibility
See expanded material information
Nominal Width (mm)
1,6
Construction Set Up
Wippenventil mit Membrandichtung
Protection Category
IP40
Burst Pressure (MPa)
2
Pitch Dimension (mm)
17
Hand Assist Actuation
None
Installation Position
arbitrary
Medium Pressure (MPa)
-0,075 to 0,3
LABS (PWIS) Conformity
VDMA24364-Zone III
Medium Temperature (°C)
10 to 50
Ambient Temperature (°C)
10 to 50
Bearing Temperature (°C)
-20 to 70
Coil Characteristic Value
12 - 24 V DC: Niederstromphase 1,4 W, Hochstromphase 5,5 W
Insulation Material Class
B
Max. Switching Frequency (Hz)
4
Corrosion Resistance Class KBK
0 - No corrosion stressing
Operating Voltage Range DC (V)
12 to 24
Permitted Voltage Oscillations
± 10 %
From Medium Contacting Materials
PEEK
Shifting Time On Liquid Media (ms)
14
Switching Time On Gaseous Media (ms)
12
Information About Protection Category
In mounted condition
Medium Temperature Liquid Media (°C)
10 to 50
Electrical Connection 1, Connection Type
Cable with plug
Electrical Connection 1, Connection Pattern
995622
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Wiring diagram H
Water Flow Rate At Max. Operating Pressure (l/min)
1,3
Standard Nominal Flow Rate (Standardised To DIN 1343)
53
EAN
4052568606312
Manufacturer
Festo
