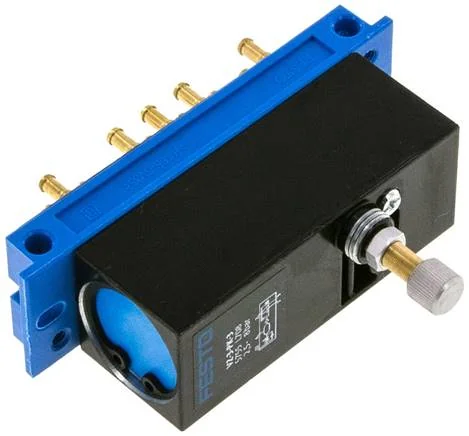

Festo - VZ-3-PK-3-5755 - Time Delay Valve

SKU: festo-vz-3-pk-3-5755

Browse all parts
Festo - VZ-3-PK-3-5755 - Time Delay Valve

€361.48€308.96 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€361.48

Brand
Festo
Overlap
negative Überdeckung
Actuation Type
pneumatic
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
on mounting frames
Housing Material
Zinc pressure cast
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Nominal Width (mm)
2
Construction Set Up
Poppet valve with reset spring
Pneumatic Connection
PK-3
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Operating Pressure (bar)
2.5 to 8
Adjustable Delay Time (s)
0.25 to 5
Ambient Temperature (°C)
-10 to 60
Repeatability Time Setting
± 0,5 s
Pause Duration For Reset (ms)
55
Note On Operating And Control Medium
Oiled operation not possible
Standard Nominal Flow Rate (Standardised To DIN 1343)
90
EAN
4052568000967
Manufacturer
Festo
