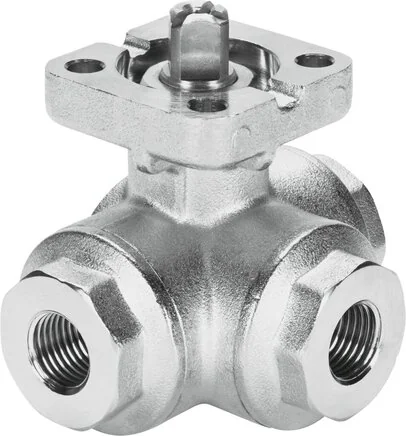

Festo - VZBA-1"-GGG-63-32L-F0405-V4V4T-1692215 - Ball Valve

SKU: festo-vzba-1-ggg-63-32l-f0405-v4v4t-1692215

Browse all parts
Festo - VZBA-1"-GGG-63-32L-F0405-V4V4T-1692215 - Ball Valve

€387.21€330.95 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€387.21

Brand
Festo
Medium
weitere Durchflussmedien auf Anfrage
Ball Material
High-alloyed stainless steels
Material Note
RoHs compliant
Actuation Type
Mechanical
Fastening Type
pipe installation
Flow Direction
Reversible
Seals Material
PTFE-verstärkt
Shaft Material
High-alloyed stainless steels
Housing Material
High-alloyed stainless steels
Nominal Width DN
25
Based On Standard
ISO 5211
Sealing Principle
Soft
Fitting Connection
Rp1
Construction Set Up
L-borehole
Flow Rate Kv L Hole
11,8
Inner Diameter (mm)
20,0
Nominal Pressure PN
63
Material - Seal Seat
PTFE, modified
Material Number Ball
14.408
Actuation Torque (Nm)
22
Hand Assist Actuation
None
Installation Position
arbitrary
Material Number Shaft
14.401
LABS (PWIS) Conformity
VDMA24364-Zone III
Flange Drilling Pattern
F05
Material Number Housing
14.408
Medium Temperature (°C)
-10 to 200
Switching Position Display
Carriage direction = flow direction
Corrosion Resistance Class KBK
3 - severe corrosion stress
EAN
4052568245153
Manufacturer
Festo
