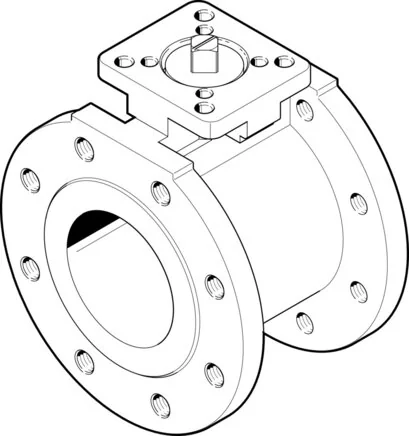

Festo - VZBC-80-FF-16-22-F07-V4V4T-1692208 - Ball Valve

SKU: festo-vzbc-80-ff-16-22-f07-v4v4t-1692208

Browse all parts
Festo - VZBC-80-FF-16-22-F07-V4V4T-1692208 - Ball Valve

€1,623.26€1,387.40 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,623.26

Brand
Festo
Medium
weitere Durchflussmedien auf Anfrage
Flow Kv
905
Ball Material
High-alloyed stainless steels
Material Note
RoHs compliant
Actuation Type
Mechanical
Fastening Type
pipe installation
Flow Direction
Reversible
Seals Material
PTFE-verstärkt
Shaft Material
High-alloyed stainless steels
Housing Material
High-alloyed stainless steels
Nominal Width DN
80
Based On Standard
ISO 5211
Sealing Principle
Soft
Fitting Connection
Ring housing with threaded flange
Construction Set Up
2-way ball valve
Inner Diameter (mm)
76
Nominal Pressure PN
16
Material Number Ball
14.408
Actuation Torque (Nm)
117
Hand Assist Actuation
None
Installation Position
arbitrary
Material Number Shaft
14.401
LABS (PWIS) Conformity
VDMA24364-Zone III
Flange Drilling Pattern
F07
Material Number Housing
14.408
Medium Temperature (°C)
-10 to 200
Switching Position Display
Carriage direction = flow direction
Corrosion Resistance Class KBK
3 - severe corrosion stress
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für Druckgeräte
CE Certificate (See Declaration Of Conformity)
to EU pressure vessel directive
EAN
4052568245092
Manufacturer
Festo
