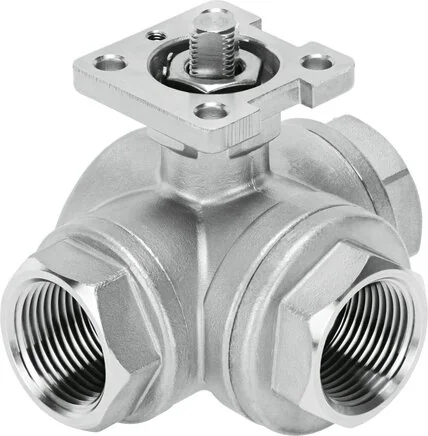

Festo - VZBE-1/4-T-63-F-3T-F04-V15V15-4834296 - Ball Valve

SKU: festo-vzbe-1-4-t-63-f-3t-f04-v15v15-4834296

Browse all parts
Festo - VZBE-1/4-T-63-F-3T-F04-V15V15-4834296 - Ball Valve

€155.36€132.79 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€155.36

Brand
Festo
Medium
neutrale Flüssigkeiten
Permission
CRN
Ball Material
Cast stainless steel
Material Note
RoHs compliant
Actuation Type
Mechanical
Fastening Type
pipe installation
Flow Direction
Reversible
Seals Material
PTFE
Shaft Material
High-alloyed stainless steels
Housing Material
Cast stainless steel
Nominal Width DN
8
Based On Standard
ISO 5211
Sealing Principle
Soft
Fitting Connection
1/4 NPT
Construction Set Up
T-borehole
Inner Diameter (mm)
11,0
Nominal Pressure PN
63
Material - Seal Seat
PTFE
Material Number Ball
14.408
Installation Position
arbitrary
Material Number Shaft
14.401
LABS (PWIS) Conformity
VDMA24364-Zone III
Flange Drilling Pattern
F04
Material Number Housing
14.408
Medium Temperature (°C)
-20 to 200
Flow Rate Kv T Hole Angled
5,0
Switching Position Display
Carriage direction = flow direction
Corrosion Resistance Class KBK
4 - particularly severe corrosion stress
Break-out Torque At A Pressure Difference Nominal Fitting Pressure PN (Nm)
9,6
EAN
4052568275778
Manufacturer
Festo
