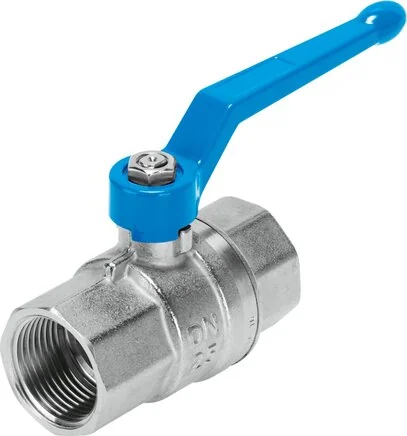

Festo - VZBM-1-RP-40-F-3T-F0304-B2B3-4451857 - Ball Valve

SKU: festo-vzbm-1-rp-40-f-3t-f0304-b2b3-4451857

Browse all parts
Festo - VZBM-1-RP-40-F-3T-F0304-B2B3-4451857 - Ball Valve

€113.22€96.77 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€113.22

Brand
Festo
Medium
neutrale Flüssigkeiten
Ball Material
chrome-plated
Material Note
RoHs compliant
Actuation Type
Mechanical
Fastening Type
pipe installation
Flow Direction
Reversible
Seals Material
PTFE
Shaft Material
Brass
Housing Material
nickel-plated
Nominal Width DN
25
Based On Standard
ISO 5211
Sealing Principle
Soft
Fitting Connection
Rp1
Construction Set Up
T-borehole
Inner Diameter (mm)
25,0
Nominal Pressure PN
40
Material Number Ball
CW614N
Installation Position
arbitrary
Material Number Shaft
CW614N
LABS (PWIS) Conformity
VDMA24364-Zone III
Flange Drilling Pattern
F04
Material Number Housing
CW617N
Medium Temperature (°C)
-20 to 130
Flow Rate Kv T Hole Angled
70,0
Switching Position Display
Carriage direction = flow direction
Corrosion Resistance Class KBK
1 - low corrosion stress
CE Certificate (See Declaration Of Conformity)
to EU pressure vessel directive
Break-out Torque At A Pressure Difference Nominal Fitting Pressure PN (Nm)
11,0
EAN
4052568291655
Manufacturer
Festo
