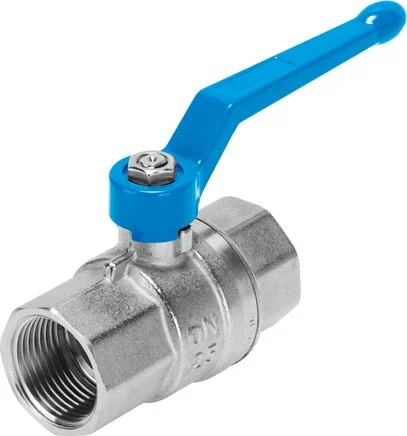

Festo - VZBM-3/8-RP-50-D-2-M-B2B3-4405685 - Ball Valve

SKU: festo-vzbm-3-8-rp-50-d-2-m-b2b3-4405685

Browse all parts
Festo - VZBM-3/8-RP-50-D-2-M-B2B3-4405685 - Ball Valve

€18.90€16.15 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€18.90

Brand
Festo
Medium
neutrale Flüssigkeiten
Flow Kv
8
Permission
DVGW Wasser
Ball Material
chrome-plated
Material Note
RoHs compliant
Actuation Type
Mechanical
Fastening Type
pipe installation
Flow Direction
Reversible
Seals Material
PTFE
Shaft Material
Brass
Housing Material
nickel-plated
Nominal Width DN
10
Based On Standard
EN 10226-1
Sealing Principle
Soft
Fitting Connection
Rp3/8
Construction Set Up
2-way ball valve
Inner Diameter (mm)
10,0
Nominal Pressure PN
50
Material Number Ball
CW617N
Installation Position
arbitrary
Material Number Shaft
CW617N
LABS (PWIS) Conformity
VDMA24364-Zone III
Material Number Housing
CW617N
Medium Temperature (°C)
-15 to 120
Switching Position Display
Carriage direction = flow direction
Corrosion Resistance Class KBK
1 - low corrosion stress
CE Certificate (See Declaration Of Conformity)
to EU pressure vessel directive
Actuation Torque For A Pressure Difference Nominal Pressure Fitting (Nm)
7,5
EAN
4052568274566
Manufacturer
Festo
