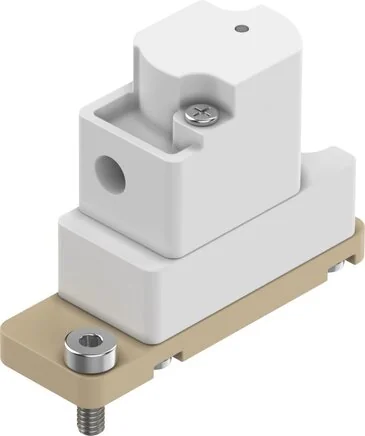

Festo - VZDB-F10-M22C-16-M3-PE-8122795 - Media Separated Pneumatic Valve

SKU: festo-vzdb-f10-m22c-16-m3-pe-8122795

Browse all parts
Festo - VZDB-F10-M22C-16-M3-PE-8122795 - Media Separated Pneumatic Valve

€148.41€126.85 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€148.41

Brand
Festo
Size
10
Flow Kv
0,034
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Actuation Type
pneumatic
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:1]
Fastening Type
mit Durchgangsbohrung für Schraube M2
Flow Direction
Not reversible
Seals Material
EPDM
Valve Function
2/2 closed monostable
Internal Volume
35 µl
Exhaust Function
Can be throttled
Fluid Connection
flange
Housing Material
PEEK
Operating Medium
Gasförmige Medien
Sealing Principle
Soft
Fitting Connection
Außengewinde/Außengewinde
Nominal Width (mm)
1,6
Construction Set Up
Wippenventil mit Membrandichtung
Hand Assist Actuation
None
Installation Position
arbitrary
Control Pressure (MPa)
0,15 to 0,3
LABS (PWIS) Conformity
VDMA24364-Zone III
Medium Temperature (°C)
0 to 50
Operating Pressure (MPa)
-0,075 to 0,1
Ambient Temperature (°C)
0 to 50
Bearing Temperature (°C)
-20 to 70
Control Air 21 Connection
M3
Max. Switching Frequency (Hz)
2
Corrosion Resistance Class KBK
0 - No corrosion stressing
Note On Operating And Control Medium
maximale Partikelgröße 5 µm
EAN
4052568556600
Manufacturer
Festo
