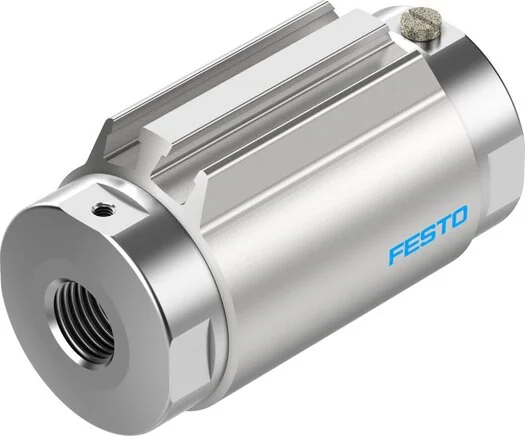

Festo - VZQA-C-M22C-6-GG-ALALE-4-4748312 - Pinch Valve

SKU: festo-vzqa-c-m22c-6-gg-alale-4-4748312

Browse all parts
Festo - VZQA-C-M22C-6-GG-ALALE-4-4748312 - Pinch Valve

€499.59€427.00 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€499.59

Brand
Festo
Medium
Water
Flow Kv
0,7
Reset Mode
Mechanical spring
Control Type
Remote controlled
Material Note
RoHs compliant
Actuation Type
pneumatic
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:1]
Fastening Type
pipe installation
Flow Direction
Reversible
Max. Viscosity
4.000
Seals Material
FPM
Valve Function
2/2 closed monostable
Clamps Material
PPS
Housing Material
Aluminium wrought alloy
Nominal Width DN
6
Sealing Principle
Soft
Fitting Connection
G1/4
Food Compatibility
See expanded material information
Construction Set Up
Pinch valve pneumatically actuated
Nominal Pressure PN
10
Burst Pressure (MPa)
1,6
Installation Position
arbitrary
Medium Pressure (MPa)
0 to 0,4
Shifting Time On (ms)
125
Housing Cover Material
Aluminium wrought alloy
LABS (PWIS) Conformity
VDMA24364-Zone III
Shifting Time Off (ms)
125
Medium Temperature (°C)
-5 to 100
Operating Pressure (MPa)
0,35 to 0,6
Ambient Temperature (°C)
-5 to 60
Bearing Temperature (°C)
5 to 20
Blocking Element Material
EPDM
Support Air Control Connection 12
M3
EAN
4052568418571
Manufacturer
Festo
