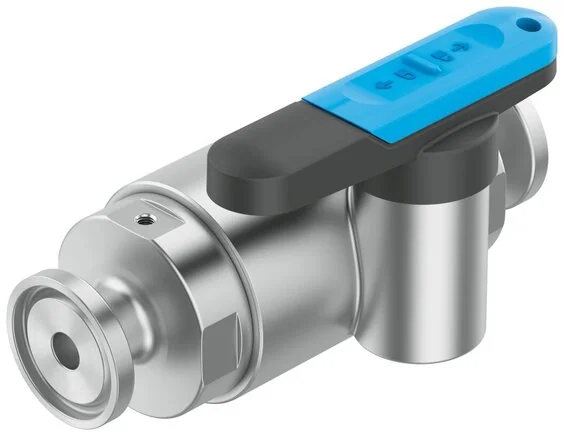

Festo - VZQH-2H-6-S5S5-V4V4S1PM-2-8187049 - Pinch Valve

SKU: festo-vzqh-2h-6-s5s5-v4v4s1pm-2-8187049

Browse all parts
Festo - VZQH-2H-6-S5S5-V4V4S1PM-2-8187049 - Pinch Valve

€487.61€416.76 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€487.61

Brand
Festo
Medium
Water
Flow Kv
0,7
Reset Mode
Mechanical spring
Control Type
Direct
Material Note
RoHs compliant
Actuation Type
Manually
Fastening Type
pipe installation
Flow Direction
Reversible
Max. Viscosity
4.000
Seals Material
HNBR
Valve Function
2/2 closed monostable
Housing Material
High-alloyed stainless steels
Nominal Width DN
6
Sealing Principle
Soft
Fitting Connection
Clamp acc. to DIN 32676 row A
Food Compatibility
See declaration of conformity
Construction Set Up
Quetschventil
Nominal Pressure PN
10
Burst Pressure (MPa)
1,6
Installation Position
arbitrary
Medium Pressure (MPa)
0 to 0,2
Shifting Time On (ms)
1000
Housing Cover Material
High-alloyed stainless steels
LABS (PWIS) Conformity
VDMA24364-Zone III
Shifting Time Off (ms)
1000
Material Number Housing
14.408
Medium Temperature (°C)
-5 to 100
Ambient Temperature (°C)
-5 to 60
Bearing Temperature (°C)
5 to 30
Blocking Element Material
VMQ (Silicone)
Housing Cover Part Number
1.4404 / AISI 316L
EAN
4052568631406
Manufacturer
Festo
