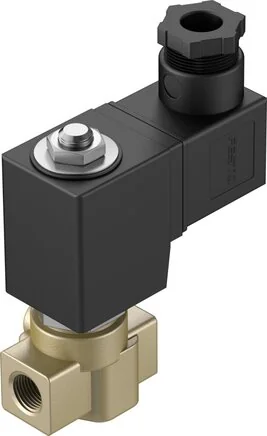

Festo - VZWD-L-M22C-M-G18-10-V-3AP4-90-1491988 - Solenoid Valve

SKU: festo-vzwd-l-m22c-m-g18-10-v-3ap4-90-1491988

Browse all parts
Festo - VZWD-L-M22C-M-G18-10-V-3AP4-90-1491988 - Solenoid Valve

€115.54€98.75 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€115.54

Brand
Festo
Medium
weitere Durchflussmedien auf Anfrage
Flow Kv
0,06
Reset Mode
Mechanical spring
Control Type
Direct
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
pipe installation
Flow Direction
Not reversible
Max. Viscosity
22
Seals Material
FPM
Valve Function
2/2 closed monostable
Housing Material
Brass cast
Sealing Principle
Soft
Fitting Connection
G1/8
Nominal Width (mm)
1
Construction Set Up
Directly controlled poppet valve
Nominal Pressure PN
100
Protection Category
IP65
Anchor Pipe Material
High-alloyed steel
Electrical Connection
viereckige Bauform
Hand Assist Actuation
None
Installation Position
arbitrary
Medium Pressure (MPa)
0 to 9
Shifting Time On (ms)
20
LABS (PWIS) Conformity
VDMA24364-Zone III
Shifting Time Off (ms)
18
Leak Rate To EN 12266-1
A
Material Number Housing
CW617N
Medium Temperature (°C)
-10 to 80
Ambient Temperature (°C)
-10 to 35
Coil Characteristic Value
230 V AC: 50/60 Hz, Anzugsleistung 18,0 VA, Halteleistung 15,0 VA
Insulation Material Class
F
Pressure Difference (MPa)
0
Corrosion Resistance Class KBK
1 - low corrosion stress
Permitted Voltage Oscillations
± 10 %
Max. Tightening Torque Coil Fastening (Nm)
2
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
Max. Tightening Torque Connection Thread (Nm)
10
CE Certificate (See Declaration Of Conformity)
to EU low voltage directive
Standard Nominal Flow Rate (Standardised To DIN 1343)
60
EAN
4052568107222
Manufacturer
Festo
