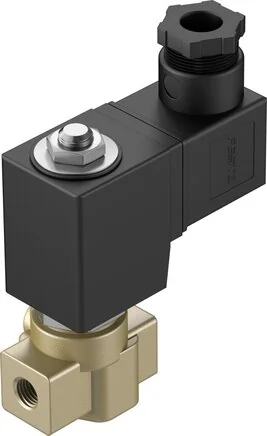

Festo - VZWD-L-M22C-M-N14-20-V-1P4-40-1491881 - Solenoid Valve

SKU: festo-vzwd-l-m22c-m-n14-20-v-1p4-40-1491881

Browse all parts
Festo - VZWD-L-M22C-M-N14-20-V-1P4-40-1491881 - Solenoid Valve

€110.64€94.56 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€110.64

Brand
Festo
Medium
weitere Durchflussmedien auf Anfrage
Flow Kv
0,13
Reset Mode
Mechanical spring
Control Type
Direct
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
pipe installation
Flow Direction
Not reversible
Max. Viscosity
22
Seals Material
FPM
Valve Function
2/2 closed monostable
Housing Material
Brass cast
Sealing Principle
Soft
Fitting Connection
1/4 NPT
Nominal Width (mm)
2
Construction Set Up
Directly controlled poppet valve
Nominal Pressure PN
100
Protection Category
IP65
Anchor Pipe Material
High-alloyed steel
Electrical Connection
viereckige Bauform
Hand Assist Actuation
None
Installation Position
arbitrary
Medium Pressure (MPa)
0 to 40
Shifting Time On (ms)
20
LABS (PWIS) Conformity
VDMA24364-Zone III
Shifting Time Off (ms)
18
Leak Rate To EN 12266-1
A
Material Number Housing
CW617N
Medium Temperature (°C)
-10 to 80
Ambient Temperature (°C)
-10 to 35
Coil Characteristic Value
24 V DC: 11,0 W
Insulation Material Class
H
Pressure Difference (MPa)
0
Corrosion Resistance Class KBK
1 - low corrosion stress
Permitted Voltage Oscillations
± 10 %
Max. Tightening Torque Coil Fastening (Nm)
2
Max. Tightening Torque Connection Thread (Nm)
35
Standard Nominal Flow Rate (Standardised To DIN 1343)
140
EAN
4052568106638
Manufacturer
Festo
