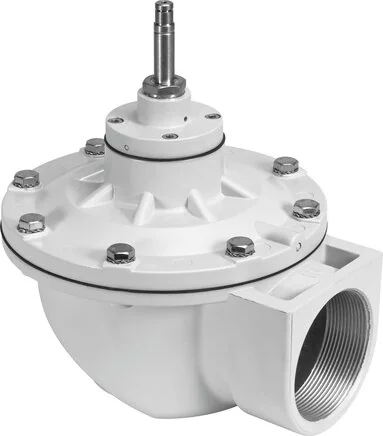

Festo - VZWE-E-M22C-M-G212-620-H-1281702 - Base Valve

SKU: festo-vzwe-e-m22c-m-g212-620-h-1281702

Browse all parts
Festo - VZWE-E-M22C-M-G212-620-H-1281702 - Base Valve

€331.00€282.91 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€331.00

Brand
Festo
Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Reset Mode
Mechanical spring
Control Type
pilot operated
Actuation Type
Electrical
Fastening Type
Permanently screwed, With thread
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
2/2 closed monostable
Flow Kv (m³/h)
95
Screws Material
High-alloyed stainless steels
Housing Material
Aluminium die casting
Sealing Principle
Soft
Diaphragm Material
NBR-PA
Nominal Width (mm)
62
Construction Set Up
diaphragm valve, Corner design
Protection Category
IP65
Anchor Pipe Material
High-alloyed steel
Fitting Connection 1
G2 1/2
Fitting Connection 2
G2 1/2
Material Information
LABS containing materials included, RoHs compliant
Hand Assist Actuation
None
Installation Position
arbitrary
Material Number Screw
1.4301
Medium Pressure (bar)
0.35 to 8
Shifting Time On (ms)
<= 30 ms
Shifting Time Off (ms)
<= 100 ms
Material Number Housing
EN AC-47100D
Ambient Temperature (°C)
-20 to 60
Pressure Difference (bar)
0,35
Corrosion Resistance Class KBK
3 - severe corrosion stress
Max. Tightening Torque Connection Thread (Nm)
350
Information About Operating And Control Medium
Oiled operation not possible
EAN
4052568229511
Manufacturer
Festo
