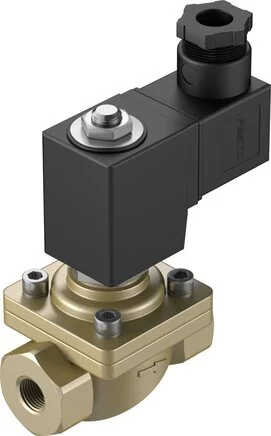

Festo - VZWF-B-L-M22C-G14-135-1P4-10-1492110 - Solenoid Valve

SKU: festo-vzwf-b-l-m22c-g14-135-1p4-10-1492110

Browse all parts
Festo - VZWF-B-L-M22C-G14-135-1P4-10-1492110 - Solenoid Valve

€119.83€102.42 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€119.83

Brand
Festo
Medium
weitere Durchflussmedien auf Anfrage
Flow Kv
1,8
Material Note
RoHs compliant
Actuation Type
Electrical
Fastening Type
pipe installation
Flow Direction
Not reversible
Max. Viscosity
22
Seals Material
NBR
Valve Function
2/2 closed monostable
Screws Material
High-alloyed stainless steels
Housing Material
Brass cast
Sealing Principle
Soft
Fitting Connection
G1/4
Nominal Width (mm)
13,5
Construction Set Up
zwangsgesteuert
Nominal Pressure PN
40
Protection Category
IP65
Electrical Connection
viereckige Bauform
Hand Assist Actuation
None
Installation Position
Magnet vertical
Material Number Screw
14.301
Medium Pressure (MPa)
0 to 1
Shifting Time On (ms)
130
LABS (PWIS) Conformity
VDMA24364-Zone III
Shifting Time Off (ms)
180
Leak Rate To EN 12266-1
A
Material Number Housing
CW617N
Medium Temperature (°C)
-10 to 80
Ambient Temperature (°C)
-10 to 35
Coil Characteristic Value
24 V DC: 11,0 W
Pressure Difference (MPa)
0
Corrosion Resistance Class KBK
1 - low corrosion stress
Permitted Voltage Oscillations
± 10 %
Standard Nominal Flow Rate (Standardised To DIN 1343)
1920
EAN
4052568107611
Manufacturer
Festo
