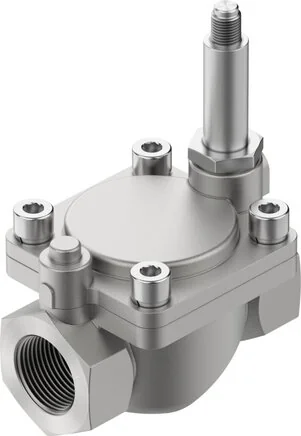

Festo - VZWM-L-M22C-N34-F5-R1-546173 - Solenoid Valve

SKU: festo-vzwm-l-m22c-n34-f5-r1-546173

Browse all parts
Festo - VZWM-L-M22C-N34-F5-R1-546173 - Solenoid Valve

€510.14€436.02 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€510.14

Brand
Festo
Medium
neutrale Flüssigkeiten
B-value
0.5
C-value
39
Flow Kv
8,5
Control Type
pilot operated
Material Note
RoHs compliant
Actuation Type
Electrical
Fastening Type
pipe installation
Flow Direction
Not reversible
Max. Viscosity
22
Seals Material
NBR
Valve Function
2/2 closed monostable
Housing Material
Cast stainless steel
Sealing Principle
Soft
Fitting Connection
3/4 NPT
Nominal Width (mm)
25
Construction Set Up
servogesteuert
Anchor Pipe Material
High-alloyed steel
Burst Pressure (MPa)
4
Electrical Connection
Solenoid type MH ... , coil can be ordered as accessory
Installation Position
Preferentially standing
Shifting Time On (ms)
15
LABS (PWIS) Conformity
VDMA24364-Zone III
Shifting Time Off (ms)
12
Material Number Housing
14.581
Overload Pressure (MPa)
3,5
Medium Temperature (°C)
-10 to 60
Ambient Temperature (°C)
-10 to 60
Pressure Difference (MPa)
0,05
Corrosion Resistance Class KBK
3 - severe corrosion stress
Shifting Time On Liquid Media (ms)
420
Shifting Time From Liquid Media (ms)
950
Medium Temperature Liquid Media (°C)
5 to 50
Max. Tightening Torque Cover Screw (Nm)
30
Max. Tightening Torque Coil Fastening (Nm)
2,0
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für Druckgeräte
Max. Tightening Torque Connection Thread (Nm)
200
Medium Pressure, Valve For Liquid Media (MPa)
0,05 to 0,6
CE Certificate (See Declaration Of Conformity)
to EU pressure vessel directive
Medium Pressure, Valve For Gaseous Media (MPa)
0,05 to 1
Standard Nominal Flow Rate (Standardised To DIN 1343)
10000
EAN
4052568352349
Manufacturer
Festo
