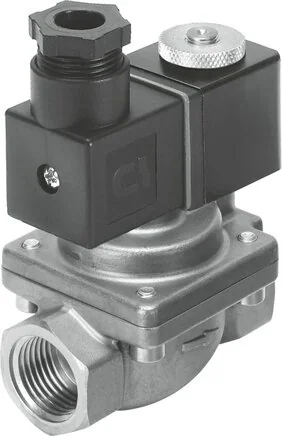

Festo - VZWP-L-M22C-G12-130-V-1P4-40-1489947 - Solenoid Valve

SKU: festo-vzwp-l-m22c-g12-130-v-1p4-40-1489947

Browse all parts
Festo - VZWP-L-M22C-G12-130-V-1P4-40-1489947 - Solenoid Valve

€294.90€252.05 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€294.90

Brand
Festo
Medium
weitere Durchflussmedien auf Anfrage
Flow Kv
2,5
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
pipe installation
Flow Direction
Not reversible
Max. Viscosity
22
Seals Material
FPM
Valve Function
2/2 closed monostable
Screws Material
High-alloyed stainless steels
Housing Material
Brass cast
Sealing Principle
Soft
Fitting Connection
G1/2
Nominal Width (mm)
13
Construction Set Up
Pre-controlled piston poppet valve
Nominal Pressure PN
40
Protection Category
IP65
Electrical Connection
viereckige Bauform
Hand Assist Actuation
None
Installation Position
Coil preferentally up
Material Number Screw
14.301
Medium Pressure (MPa)
0.05 to 4
Shifting Time On (ms)
100
LABS (PWIS) Conformity
VDMA24364-Zone III
Shifting Time Off (ms)
250
Leak Rate To EN 12266-1
A
Material Number Housing
CW617N
Medium Temperature (°C)
-10 to 80
Ambient Temperature (°C)
-10 to 35
Coil Characteristic Value
24 V DC: 6,8 W
Insulation Material Class
H
Pressure Difference (MPa)
0,05
Corrosion Resistance Class KBK
1 - low corrosion stress
Permitted Voltage Oscillations
± 10 %
Standard Nominal Flow Rate (Standardised To DIN 1343)
2650
EAN
4052568233709
Manufacturer
Festo
