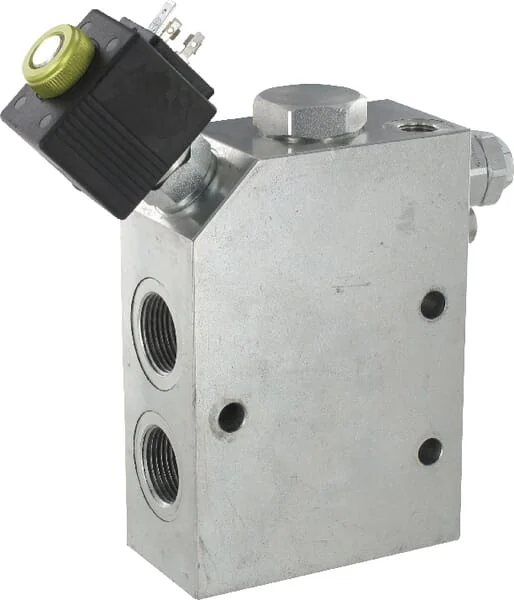

FluidPress - FPEXCHEV1234S35 - Hammer Valve And Safety 3-Stage Valve
FluidPress - FPEXCHEV1234S35 - Hammer Valve And Safety 3-Stage Valve
FluidPress - FPEXCHEV1234S35 - Hammer Valve And Safety 3-Stage Valve
FluidPress - FPEXCHEV1234S35 - Hammer Valve And Safety 3-Stage Valve
FluidPress - FPEXCHEV1234S35 - Hammer Valve And Safety 3-Stage Valve
FluidPress - FPEXCHEV1234S35 - Hammer Valve And Safety 3-Stage Valve

In stock - ready to ship

Order now for delivery between 18 May and 21 May
Free shipping

Pay Securely with

FluidPress - FPEXCHEV1234S35 - Hammer Valve And Safety 3-Stage Valve

FluidPress - FPEXCHEV1234S35 - Hammer Valve And Safety 3-Stage Valve

€482.13

(Excl. VAT)

Price

(Excl. VAT)

€482.13

Product Details

Brand
FluidPress
Unit
Each
Total length
184 mm
Min. flow rate
200 l/min
Technical info
-To ensure correct working of hydrostat whenthe electric valve is open, it’s important abackpressure of at least 7.5 bar on theregulated line (P). Otherwise, it’s necessary toinstall a check valve to guarantee therequested backpressure. When positioning and tightening the valve, toavoid any deflection of the body which couldprevent the internal spool from workingcorrectly, it is recommended to insert 3 equalspacers (metal washers), one on each fixinghole, between the valve body and thesupporting structure.
Max working pressure
350 BAR
Total width (diameter)
100 mm
Connection thread diameter
3/4 Inch
Connection 2, thread diameter
1/4 Inch
Manufacturer
FluidPress
