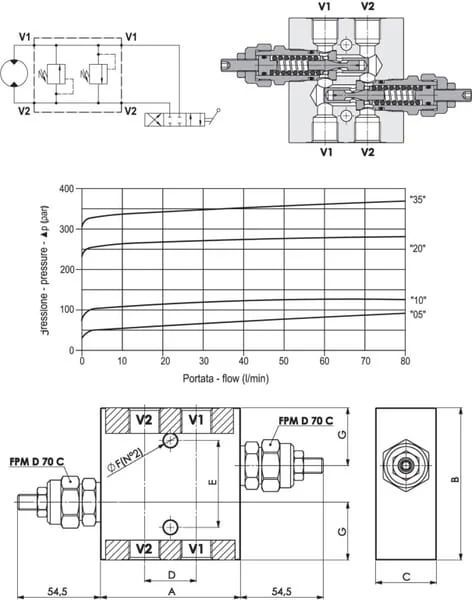

FluidPress - FPMD10001IL - Pressure Relief Valve FPMD 1/2
FluidPress - FPMD10001IL - Pressure Relief Valve FPMD 1/2
FluidPress - FPMD10001IL - Pressure Relief Valve FPMD 1/2
FluidPress - FPMD10001IL - Pressure Relief Valve FPMD 1/2
FluidPress - FPMD10001IL - Pressure Relief Valve FPMD 1/2

In stock - ready to ship

Order now for delivery between 25 May and 28 May
Free shipping

Pay Securely with

FluidPress - FPMD10001IL - Pressure Relief Valve FPMD 1/2

FluidPress - FPMD10001IL - Pressure Relief Valve FPMD 1/2

€78.06

(Excl. VAT)

Price

(Excl. VAT)

€78.06

Product Description

High pressure and medium volume flow To be used as a damping valve for a hydraulic motor with separate pressure rating For protecting hydraulic motors against peak pressures resulting from external forces that occur when the rotation stops suddenly or reverses High pressure and medium volume flow To be used as a damping valve for a hydraulic motor with separate pressure rating For protecting hydraulic motors against peak pressures resulting from external forces that occur when the rotation stops suddenly or reverses For best results, this valve should be placed as close to the consumer as possible
Fluidpress

Product Details

Brand
FluidPress
Unit
Each
CHousing width
40 mm
Max. flow rate
80 l/min
AHousing length
100 mm
Adjustment type
Socket screw
BHousing height
92 mm
Connection type
Thread
Max working pressure
280 BAR
Connection thread type
BSP
Adjustable pressure range
80-280 BAR
Connection 2, thread type
BSP
V1Connection thread diameter
1/2 Inch
V2Connection 2, thread diameter
1/2 Inch
Manufacturer
FluidPress
