FluidPress - FPOE70D12LA35B - Counter Balance Valve Double 1/2"
FluidPress - FPOE70D12LA35B - Counter Balance Valve Double 1/2"
FluidPress - FPOE70D12LA35B - Counter Balance Valve Double 1/2"
FluidPress - FPOE70D12LA35B - Counter Balance Valve Double 1/2"
FluidPress - FPOE70D12LA35B - Counter Balance Valve Double 1/2"
FluidPress - FPOE70D12LA35B - Counter Balance Valve Double 1/2"

In stock - ready to ship

Order now for delivery between 16 May and 20 May
Free shipping

Pay Securely with

FluidPress - FPOE70D12LA35B - Counter Balance Valve Double 1/2"

FluidPress - FPOE70D12LA35B - Counter Balance Valve Double 1/2"

€103.19

(Excl. VAT)

Price

(Excl. VAT)

€103.19

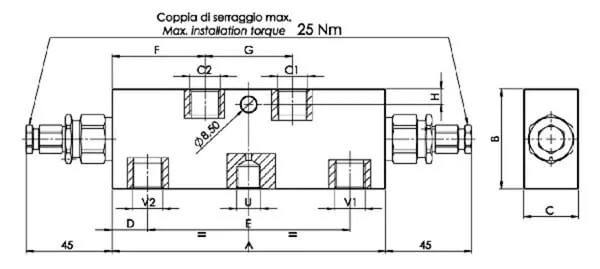

Product Description

Equalising valves or brake valves provide controlled movement, stopping and holding of loads. They prevent the lag of movements (negative load) and protect the installation against external forces (anti-shock). Overcentre valves provide controlled initiation and stopping of a movement, while holding the load at rest. When mounted directly on the cylinder or motor, they also function as hose breakage protection. Show more
Fluidpress

Product Details

Brand
FluidPress
Pros
Allows smooth, controlled movements and accurate positioning of pulling and pushing loads Hose breakage protection if fitted as close to the user as possible Negative final check
Type
Double
Unit
Each
Includes
Cartridge Steel housing
Material
Aluminium
Body length
156 mm
Pilot ratio
1:8.2
CTotal width
35 mm
Total length
248 mm
BTotal height
70 mm
Intended medium
Hydraulic oil
Sealing material
Buna-N
Nominal flow rate
70 NI/min
Max working pressure
210 BAR
Number of connections
4
Max working temperature
90 °C
Min working temperature
-20 °C
Adjustable pressure range
120-350 BAR
Standard pressure setting
350 BAR
Connections thread diameter
1/2 Inch
EConnections distance - long
80 mm
GConnections distance - short
36 mm
Manufacturer
FluidPress
