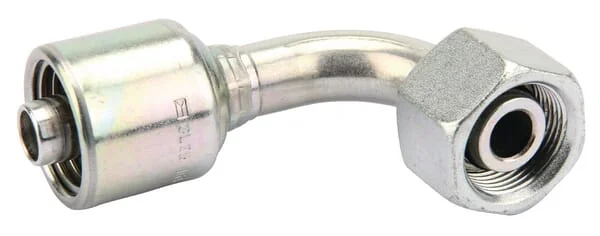

Gates - 8G16FDHORX90 - Press Coupling 1/2 Hose M24x1.5 Wartel 90°
Gates - 8G16FDHORX90 - Press Coupling 1/2 Hose M24x1.5 Wartel 90°
Gates - 8G16FDHORX90 - Press Coupling 1/2 Hose M24x1.5 Wartel 90°
Gates - 8G16FDHORX90 - Press Coupling 1/2 Hose M24x1.5 Wartel 90°
Gates - 8G16FDHORX90 - Press Coupling 1/2 Hose M24x1.5 Wartel 90°

In stock - ready to ship

Order now for delivery between 23 May and 27 May
Free shipping on orders over €60

Pay Securely with

Gates - 8G16FDHORX90 - Press Coupling 1/2 Hose M24x1.5 Wartel 90°

Gates - 8G16FDHORX90 - Press Coupling 1/2 Hose M24x1.5 Wartel 90°

€16.95

(Excl. VAT)

Price

(Excl. VAT)

€16.95

Product Description

The Gates 8G16FDHORX90 is a genuine G2 Global Series 90-degree metric swivel female press coupling, designed for secure connection with 1/2 inch (DN12) hydraulic hoses. This durable steel fitting features an M24x1.5 metric swivel thread, ensuring a reliable and leak-free connection in various hydraulic applications. Ideal for agricultural, construction, and industrial machinery requiring a robust 90° elbow hydraulic fitting.
Gates
Gates is a global leader in power transmission and hydraulic solutions for agricultural machinery. The brand produces belts, hoses, and fluid power products for tractors and implements. Its components are engineered for durability and efficiency in harsh farming environments. Shop more than 2,508 genuine Gates spare parts.

Product Details

Brand
Gates
Unit
Each
Angle
90 °
Shape
Elbow - 2 connection sides
Connection 2, type
Hose end
Connection no 1 type
Swivel nut
DConnection 2, diameter
12 mm
Connection no 1 diameter
12 mm
Connection no 1 thread pitch
1.50 mm
HConnection no 1 wrench size
30.0 mm
Connection no 1 thread diameter
M24
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
BConnection centre to insert distance
40,4 mm
EConnection 2, centre to end distance
44 mm
AConnection no 1 center to end distance
77,9 mm
Manufacturer
Gates
