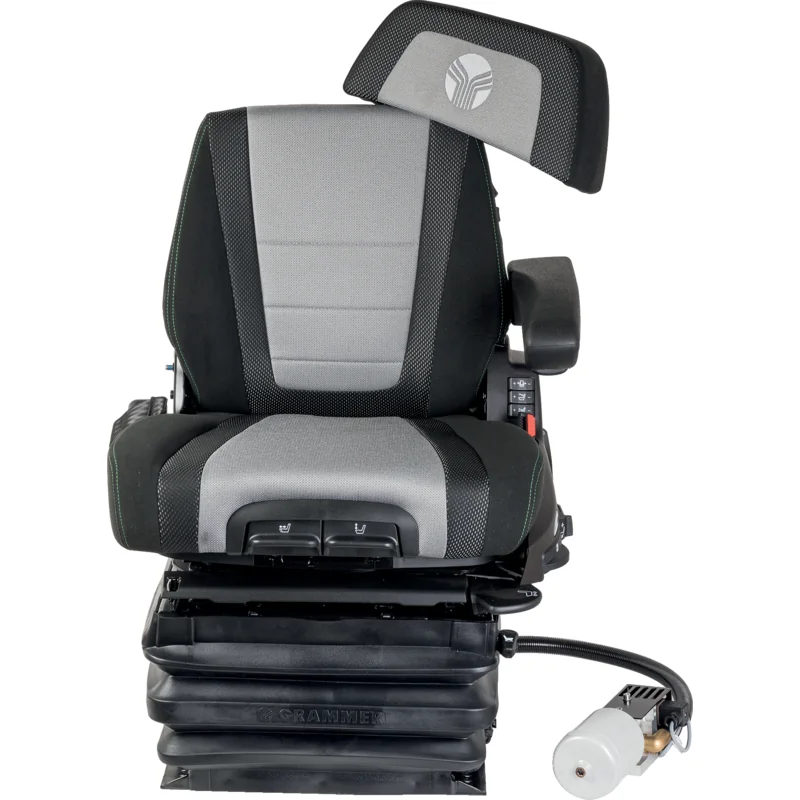

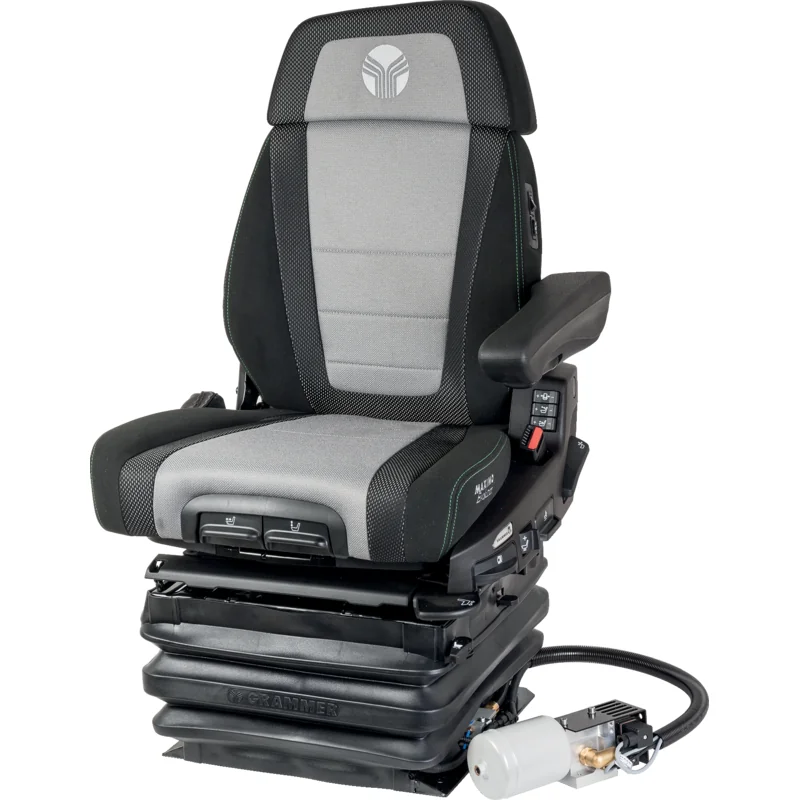

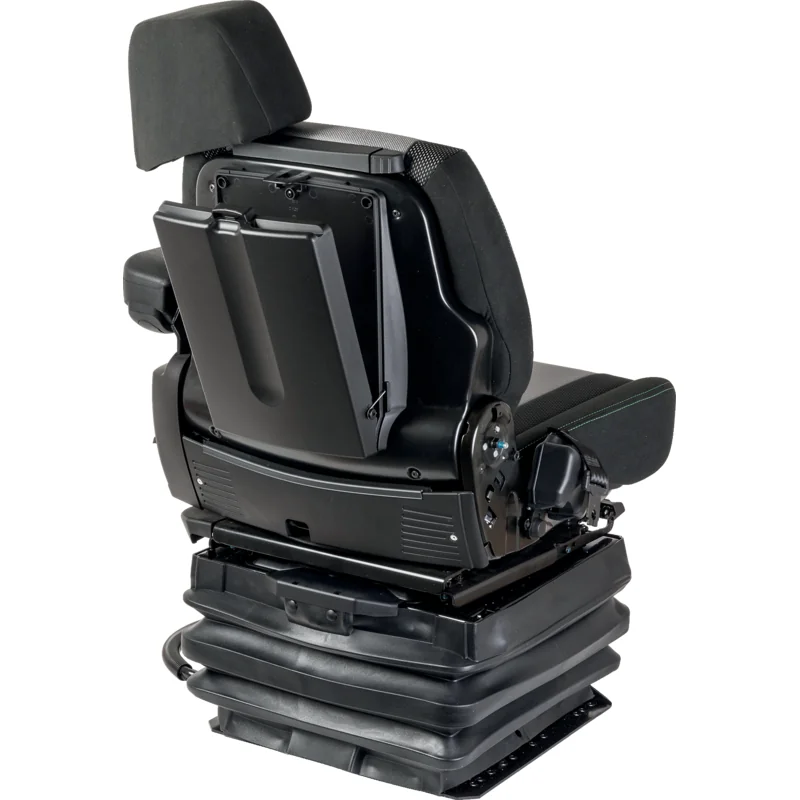

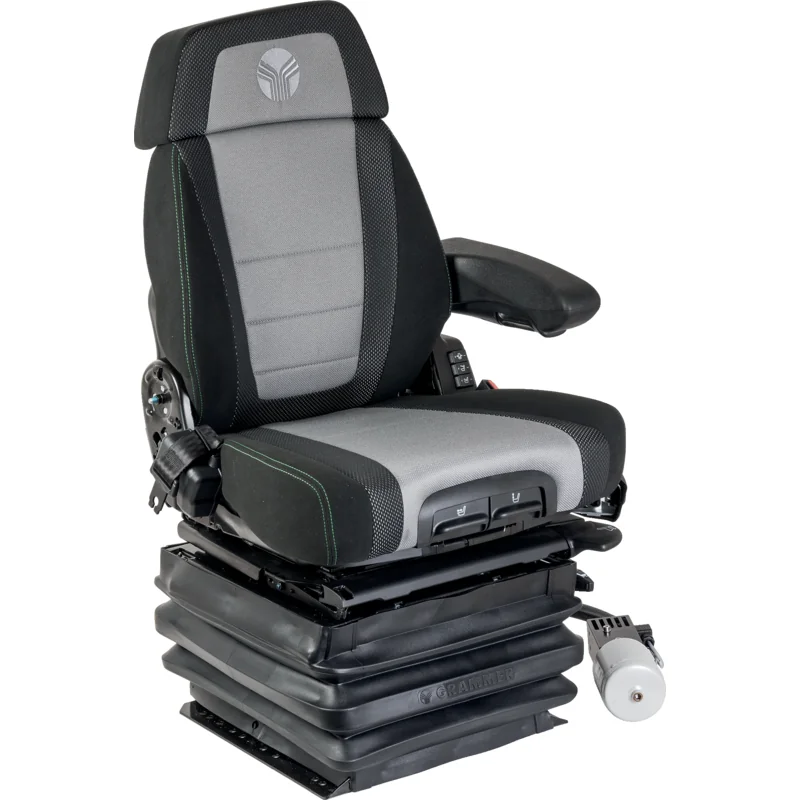

Grammer - 1424507 - Seat

OEM Quality

SKU: grammer-1424507

Browse all parts
Grammer - 1424507 - Seat

€7,920.03€6,769.26 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Trustpilot

Price

€7,920.03

Brand
Grammer
Width (mm)
617
Height (mm)
942
Length (mm)
636
Seat Switch
Ja
Voltage (V)
12
Seat Heating
Ja
Rotary Adapter
15 °
Track Width (mm)
429
Weight From (kg)
50
Weight Up To (kg)
130
Backrest Extension
Ja
Spring Travel (mm)
120
Automatic Positioning
Ja
Upholstery Width (mm)
550
Height Adjustment (mm)
80
Length Adjustment (mm)
210
Resistance, Loaded (Ohm)
3000
Resistance, Unloaded (Ohm)
500
Lateral Horizontal Suspension
Ja
Longitudinal Horizontal Suspension
Ja
Manufacturer
Grammer

Features Storage pocket APS (Automatic Positioning System with actively controlled suspension) Left armrest, 80 x 380 mm, height-adjustable and foldable or recline-adjustable, with fabric cover Automatically adjustable damper for vertical suspension Swivel adapter 15° left and right Electronically actively controlled suspension Suspension travel 120 mm Active weight adjustment 50 - 130 kg Stepless height adjustment 80 mm Active climate system Longitudinal adjustment 210 mm Longitudinal horizontal suspension Lateral horizontal suspension Cushion width 550 mm Pneumatic lumbar support Backrest recline adjustment 2-stage seat heating Seat cushion depth and recline adjustment Seat contact switch 3.000 to 500 Ohm Dualmotion back support Side contour adjustment Duosensitive automatic lap belt Active Seat Climate Control: The most important criterion for well-being in the vehicle is a comfortable temperature. However, even with air conditioning in the vehicle, the driver sweats in the contact area with the seat. The active seat climate control wicks away body moisture. This way, the driver never again sits at the wheel drenched in sweat. On cold days, the standard 2-stage seat heating ensures comfortable seating. EAC Suspension: With the electronically actively controlled suspension ( EAC ), the vibration load for drivers of large tractors is reduced to a minimum. The electronic system for active vertical suspension ensures a reduction of harmful vibrations by 40 percent compared to the proven low-frequency suspension. Maximum accelerations are even reduced by up to 75 percent.
Grammer
Grammer AG is a global manufacturer specializing in components and systems for vehicle interiors, with a strong focus on seating systems for commercial vehicles. Founded in 1880 by Willibald Grammer in Amberg, Germany, the company initially produced seat cushions. Over its long history, Grammer evolved into a leading supplier of innovative seating solutions, particularly for agricultural machinery, construction equipment, forklifts, and trucks. The company's headquarters remain in Amberg, Germany, and it operates globally, serving major OEMs and the aftermarket. Grammer's product portfolio includes a wide range of driver and passenger seats known for their ergonomic design, advanced suspension technology, and climate control features. For the agricultural sector, the brand offers specialized seats designed to reduce operator fatigue and enhance comfort during long working hours in demanding conditions. These seats often incorporate air suspension, active climate systems, and multi-adjustable features. While not an equipment manufacturer itself, Grammer's seating systems are integral components in many leading tractor and harvester brands, contributing significantly to operator well-being. At Partao, you can find a comprehensive selection of genuine Grammer spare parts across top categories like Other Cab, Body & Steering Parts, Air Filters, Alternators, Axles and Steering, and Ball Bearings. These components are essential for maintaining the functionality and comfort of Grammer seating systems and related vehicle interiors. Operators of agricultural and off-road vehicles value Grammer seats for their superior comfort and durability, which directly impacts productivity and health. The brand's commitment to ergonomic innovation ensures that its seating solutions meet the rigorous demands of professional use. Its widespread adoption by leading equipment manufacturers underscores the quality and reliability of Grammer products in the global market. Shop more than 1,599 genuine Grammer spare parts.
