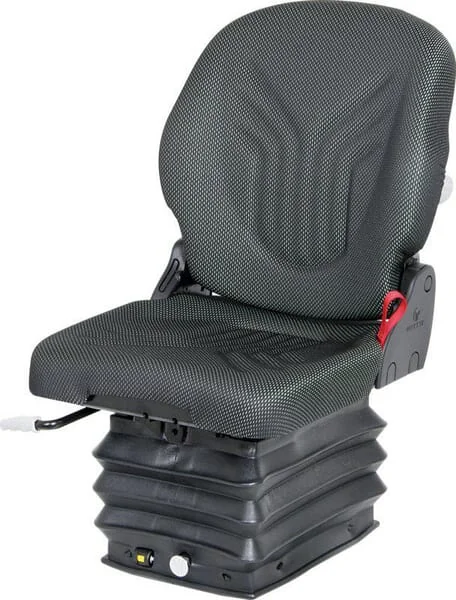

Grammer - G1289043 - Seat Compacto Comfort S Grammer
Grammer - G1289043 - Seat Compacto Comfort S Grammer
Grammer - G1289043 - Seat Compacto Comfort S Grammer
Grammer - G1289043 - Seat Compacto Comfort S Grammer

In stock - ready to ship

Order now for delivery between 26 May and 29 May
Free shipping

Pay Securely with

Grammer - G1289043 - Seat Compacto Comfort S Grammer

Grammer - G1289043 - Seat Compacto Comfort S Grammer

€817.25

(Excl. VAT)

Price

(Excl. VAT)

€817.25

Product Description

Application range: For small and narrow-track tractors, construction machines and mini excavators Benefits: Offers optimised seat comfort in the smallest of spaces A handle can be used to move the seat into the correct position Consists of: Seat With compressor Without backrest extension Without arm rests Details: Air-sprung seat Air-assisted weight adjustment Properties: Seat cushion width 400 mm Spring travel: 80 mm Height adjustment 60 mm, infinitely variable Horizontal adjustment 210 mm Weight 26 kg Backrest inclination adjustment Lumbar support, mechanically adjustable
Grammer
Grammer designs and manufactures premium seating systems for agricultural machinery and off-road vehicles. The brand's seats feature advanced suspension technology, ergonomic designs, and climate control options for operator comfort. Its products are installed in tractors, harvesters, and other heavy agricultural equipment. Shop more than 1,024 genuine Grammer spare parts.

Product Details

Brand
Grammer
Unit
Each
Depth
532 mm
Model
MSG93/511
Details
Air-sprung seat Air-assisted weight adjustment
Benefits
Offers optimised seat comfort in the smallest of spaces A handle can be used to move the seat into the correct position
Properties
Seat cushion width 400 mm Spring travel: 80 mm Height adjustment 60 mm, infinitely variable Horizontal adjustment 210 mm Weight 26 kg Backrest inclination adjustment Lumbar support, mechanically adjustable
Consists of
Seat With compressor Without backrest extension Without arm rests
Total width
400 mm
Total height
692 mm
Total length
532 mm
Supply voltage
12 V
Suspension type
Pneumatic
Long description
Application range: For small and narrow-track tractors, construction machines and mini excavators Benefits: Offers optimised seat comfort in the smallest of spaces A handle can be used to move the seat into the correct position Consists of: Seat With compressor Without backrest extension Without arm rests Details: Air-sprung seat Air-assisted weight adjustment Properties: Seat cushion width 400 mm Spring travel: 80 mm Height adjustment 60 mm, infinitely variable Horizontal adjustment 210 mm Weight 26 kg Backrest inclination adjustment Lumbar support, mechanically adjustable
Application range
For small and narrow-track tractors, construction machines and mini excavators
Armrests included
No
Height adjustment
6 cm
Max. working load
130 kg
Min. working load
50 kg
Seatbelt included
No
Suspension stroke
8 cm
Upholstery colour
Black
Upholstery material
Fabric
Heating kit included
No
Contact switch included
No
Auto user weight adjustment
No
Backrest extension included
No
Manufacturer
Grammer
