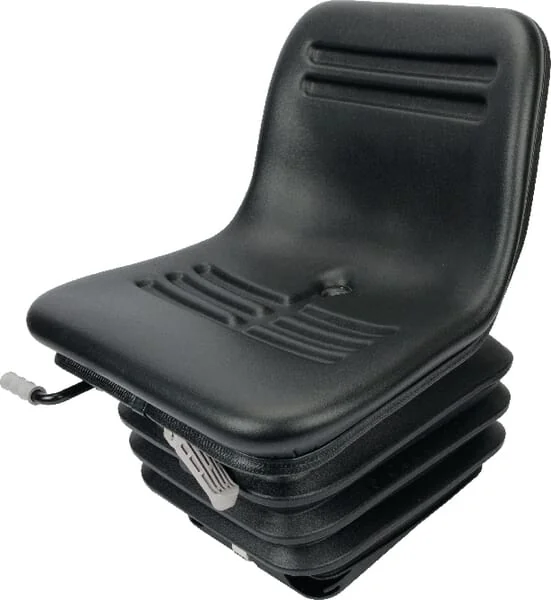

Grammer - G1333859 - Seat Compacto Basic XS
Grammer - G1333859 - Seat Compacto Basic XS
Grammer - G1333859 - Seat Compacto Basic XS
Grammer - G1333859 - Seat Compacto Basic XS
Grammer - G1333859 - Seat Compacto Basic XS
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Grammer - G1333859 - Seat Compacto Basic XS

Grammer - G1333859 - Seat Compacto Basic XS

€376.32

(Excl. VAT)

Price

(Excl. VAT)

€376.32

Product Description

Application range: For small and narrow-track tractors, construction machines and mini excavators Benefits: Offers optimised seat comfort in the smallest of spaces Consists of: Seat Without backrest extension Without arm rests Details: Mechanical seat with guide suspension and hydraulic dampers Properties: Seat cushion width 400 mm Spring travel: 80 mm Height adjustment 60 mm, 3-stage adjustment Horizontal adjustment 210 mm Weight adjustment 50–130 kg Weight 25 kg Backrest inclination adjustme
Grammer
Grammer designs and manufactures premium seating systems for agricultural machinery and off-road vehicles. The brand's seats feature advanced suspension technology, ergonomic designs, and climate control options for operator comfort. Its products are installed in tractors, harvesters, and other heavy agricultural equipment. Shop more than 1,024 genuine Grammer spare parts.

Product Details

Brand
Grammer
Unit
Each
Depth
460 mm
Model
MSG283/8
Benefits
Offers optimised seat comfort in the smallest of spaces
Properties
Seat cushion width 400 mm Spring travel: 80 mm Height adjustment 60 mm, 3-stage adjustment Horizontal adjustment 210 mm Weight adjustment 50–130 kg Weight 25 kg Backrest inclination adjustment
Consists of
Seat Without backrest extension Without arm rests
Total width
420 mm
Total height
513 mm
Total length
460 mm
Suspension type
Mechanical
Application range
For small and narrow-track tractors, construction machines and mini excavators
Armrests included
No
Height adjustment
6 cm
Max. working load
150 kg
Min. working load
50 kg
Seatbelt included
No
Suspension stroke
6 cm
Upholstery colour
Black
Upholstery material
PVC
Heating kit included
No
Contact switch included
No
Auto user weight adjustment
No
Backrest extension included
No
Manufacturer
