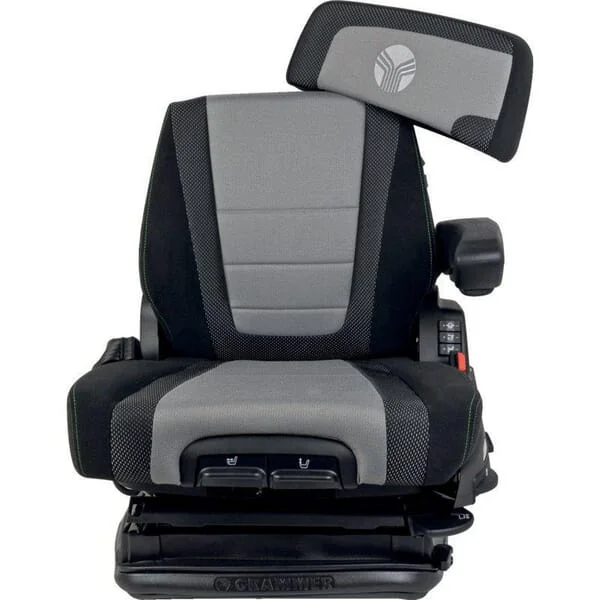

Grammer - G1388488 - Seat Maximo XT Evolution Dynamic
Grammer - G1388488 - Seat Maximo XT Evolution Dynamic
Grammer - G1388488 - Seat Maximo XT Evolution Dynamic
Grammer - G1388488 - Seat Maximo XT Evolution Dynamic
Grammer - G1388488 - Seat Maximo XT Evolution Dynamic
Grammer - G1388488 - Seat Maximo XT Evolution Dynamic
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Grammer - G1388488 - Seat Maximo XT Evolution Dynamic

Grammer - G1388488 - Seat Maximo XT Evolution Dynamic

€3,952.40

(Excl. VAT)

Price

(Excl. VAT)

€3,952.40

Product Description

Air-sprung premium seat with Dynamic Damping System and active weight adjustment (50 kg – 130 kg) With lateral and longitudinal horizontal suspension With seat air-conditioning Active suspension Adjustable damper
Grammer
Grammer designs and manufactures premium seating systems for agricultural machinery and off-road vehicles. The brand's seats feature advanced suspension technology, ergonomic designs, and climate control options for operator comfort. Its products are installed in tractors, harvesters, and other heavy agricultural equipment. Shop more than 1,024 genuine Grammer spare parts.

Product Details

Brand
Grammer
Unit
Each
Depth
652 mm
Model
MSG95EL/741
Benefits
Extremely comfortable seat Protects the back from impacts Body moisture is carried away Very low vibration impact Variety of operating conditions
Properties
Seat cushion width 550 mm Spring travel 100/120 mm Infinitely variable height adjustment 80 mm, air-assisted Horizontal adjustment 210 mm Backrest inclination adjustment, maximum 35° Lumbar support, pneumatically adjustable Active seat air-conditioning Weight adjustment 50–130 kg, automatic Weight 56 kg Seat heating (seat and seat back) APS: automatic positioning system Seat cushion depth and inclination adjustment
Consists of
Seat Seat switch (excluding G1189516) With backrest extension With arm rests, adjustable inclination 80 mm x 380 mm Backrest inclination adjustment, max. 35° Rotation adapter 20° Store bag Integrated air compressor (12 V)
Total width
565 mm
Total height
918 mm
Total length
652 mm
Supply voltage
12 V
Suspension type
Pneumatic
Application range
For heavy tractors
Armrests included
Yes
Height adjustment
8 cm
Max. working load
130 kg
Min. working load
50 kg
Seatbelt included
Yes
Suspension stroke
12 cm
Upholstery colour
Grey Black
Upholstery material
Fabric
Heating kit included
Yes
Back angle adjustment
35 °
Contact switch included
Yes
Auto user weight adjustment
Yes
Backrest extension included
Yes
Manufacturer
Grammer
