Home
Cab, Body & Steering
Seats & Cushions

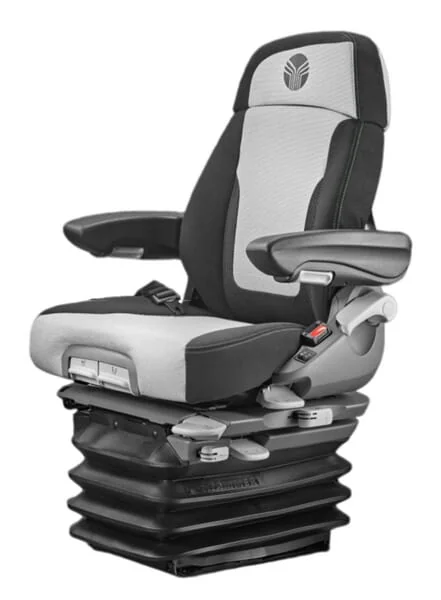

Grammer - G1420563 - Seat Maximo Dynamic Plus Update Fabric Grammer
Grammer - G1420563 - Seat Maximo Dynamic Plus Update Fabric Grammer
Grammer - G1420563 - Seat Maximo Dynamic Plus Update Fabric Grammer
Grammer - G1420563 - Seat Maximo Dynamic Plus Update Fabric Grammer
Grammer - G1420563 - Seat Maximo Dynamic Plus Update Fabric Grammer
Grammer - G1420563 - Seat Maximo Dynamic Plus Update Fabric Grammer
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Grammer - G1420563 - Seat Maximo Dynamic Plus Update Fabric Grammer

Grammer - G1420563 - Seat Maximo Dynamic Plus Update Fabric Grammer

€2,834.84

(Excl. VAT)

Price

(Excl. VAT)

€2,834.84

Product Description

Air-sprung seat With dynamic damping system (DDS) Fully automatic weight adjustment With longitudinal horizontal suspension, blocking With rotation adaptor Low-frequency suspension
Grammer
Grammer designs and manufactures premium seating systems for agricultural machinery and off-road vehicles. The brand's seats feature advanced suspension technology, ergonomic designs, and climate control options for operator comfort. Its products are installed in tractors, harvesters, and other heavy agricultural equipment. Shop more than 1,024 genuine Grammer spare parts.

Product Details

Brand
Grammer
Unit
Each
Depth
648 mm
Benefits
Extremely comfortable seat No spring penetration thanks to DDS Effectively prevents spinal disc damage Protects the back from impacts Facilitates entry Significantly reduces vibrations
Properties
Seat cushion width 565 mm Spring travel: 120 mm Infinitely variable height adjustment 80 mm, air-assisted Horizontal adjustment 210 mm Backrest inclination adjustment, max. 35° Lumbar support, pneumatically adjustable Air-conditioning system, active charcoal filter Weight adjustment 50–130 kg Weight 52 kg Seat heating (seat and seat back) APS: automatic positioning system
Consists of
Seat With backrest extension With left arm rest, adjustable inclination 80 mm x 380 mm Without right arm console Rotation adapter 20° Store bag Integrated air compressor (12 V)
Total width
565 mm
Total height
920 mm
Total length
648 mm
Supply voltage
12 V
Suspension type
Pneumatic
Application range
For medium-sized and heavy tractors
Armrests included
Yes
Height adjustment
8 cm
Max. working load
130 kg
Min. working load
50 kg
Seatbelt included
Yes
Suspension stroke
12 cm
Upholstery colour
Black Grey
Upholstery material
Fabric Alcantara
Heating kit included
Yes
Back angle adjustment
35 °
Contact switch included
No
Auto user weight adjustment
Yes
Backrest extension included
Yes
Manufacturer
Grammer
