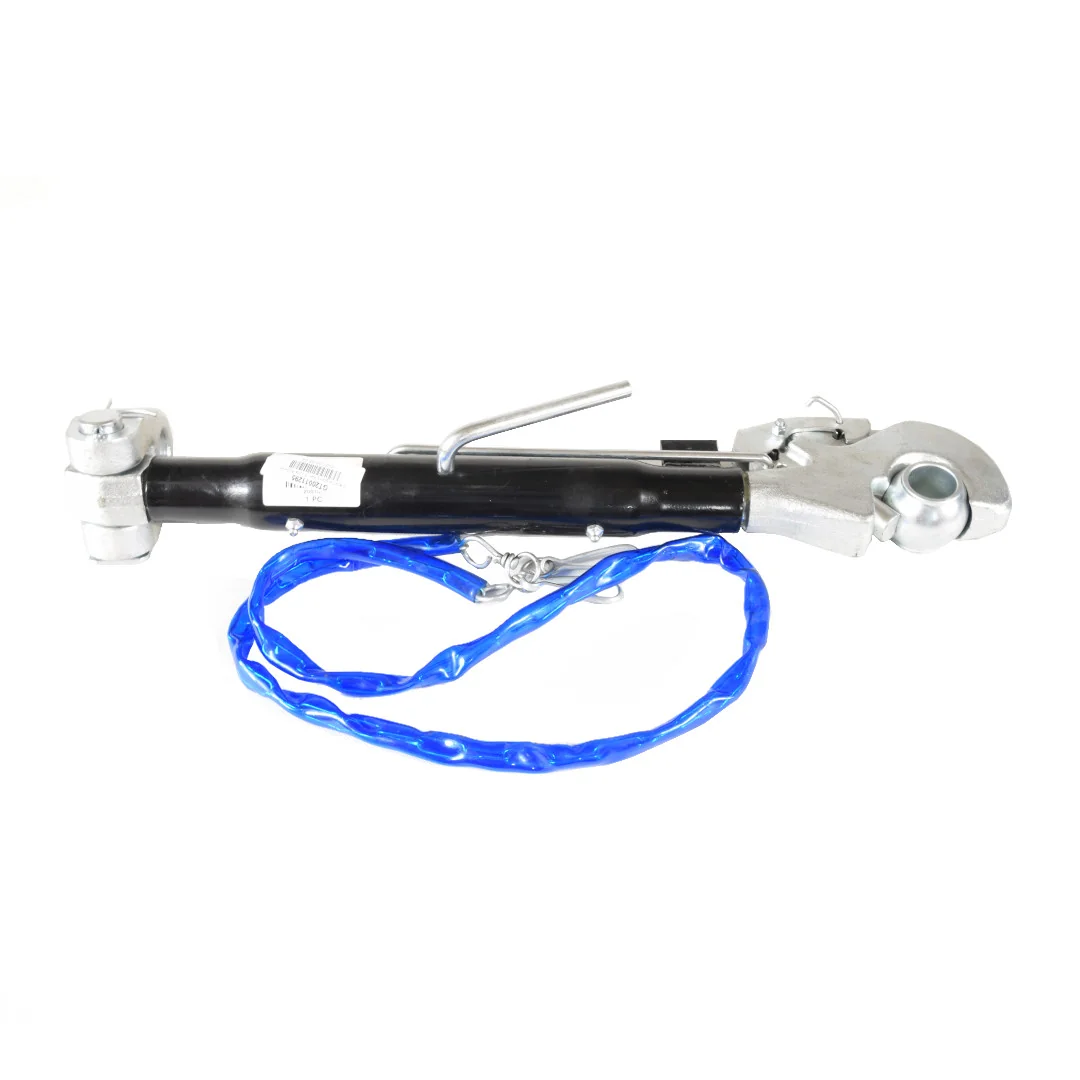

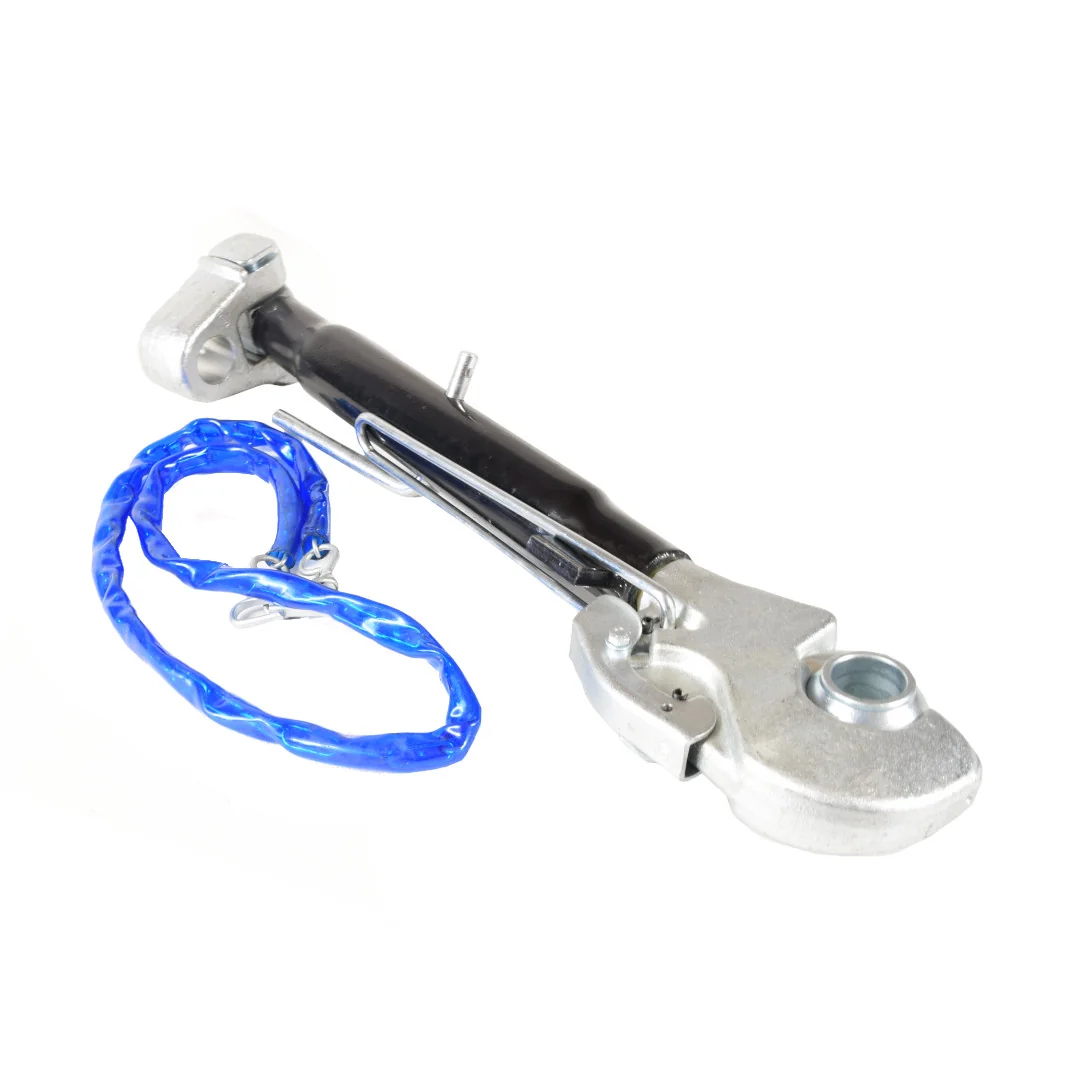

Granit - 20011295 - Upper Center Link 400 Mm Cat. 3/3 Joint And Hook M36x3
Granit - 20011295 - Upper Center Link 400 Mm Cat. 3/3 Joint And Hook M36x3
Granit - 20011295 - Upper Center Link 400 Mm Cat. 3/3 Joint And Hook M36x3
Granit - 20011295 - Upper Center Link 400 Mm Cat. 3/3 Joint And Hook M36x3

In stock - ready to ship

Order now for delivery between 18 July and 22 July
Free shipping

Pay Securely with

Granit - 20011295 - Upper Center Link 400 Mm Cat. 3/3 Joint And Hook M36x3

Granit - 20011295 - Upper Center Link 400 Mm Cat. 3/3 Joint And Hook M36x3

€124.83

(Excl. VAT)

Price

(Excl. VAT)

€124.83

Product Description

This upper central link connects the tractor’s top-link attachment point to the implement’s top hitch pin. It forms the upper leg of the three-point linkage, controlling the implement’s fore-aft tilt and maintaining the correct working angle of the attached tool. The link is fitted with a joint at one end and a hook at the other, both with an M36x3 thread, which secures into the tractor’s top-link ball and the implement’s top pin. A worn or bent link allows the implement to drift out of level, causing uneven depth or draft load. This replacement link is manufactured to the same thread dimensions and category 3 geometry as the original assembly, so no bushing adapters or thread reducers are needed for installation.
Granit
Granit Parts, a brand of Wilhelm Fricke GmbH, was established in 1963 in Heeslingen, Germany. Initially focused on spare parts for agricultural machinery, the company has grown significantly to become a major international wholesaler. Granit Parts operates under the umbrella of the Fricke Group, maintaining its headquarters in Heeslingen and serving a broad customer base across Europe and beyond. Granit Parts offers an extensive range of spare parts and accessories for agricultural machinery, construction equipment, garden and forestry technology, and industrial applications. The brand is known for its comprehensive catalog, which includes components for tractors, harvesters, and various implements. Its product portfolio spans from engine and transmission parts to hydraulics, electrics, and workshop supplies, catering to diverse needs within the agricultural and machinery sectors. At Partao, you can find a wide selection of Granit spare parts, including Other Attachments, Diagnostic Tools, Air Filters, Alternators, and Apparel. These categories represent essential components for maintaining and repairing a variety of agricultural machines. Over 1313,476 genuine Granit spare parts are available at Partao. Granit Parts is a preferred choice for workshops and dealers due to its vast product availability and efficient logistics network. The brand's commitment to providing high-quality, readily available parts helps ensure that agricultural machinery operators can minimize downtime and maintain their equipment effectively. Its strong presence in the European market makes it a reliable source for critical components.

Product Details

Brand
Granit
Part Numbers
20011295
Length
640 mm, 960 mm
Application
Tractors and vehicles
Thread Size
M36
Thread Pitch
3
Sleeve Length
400 mm
Three-Point Hitch Category
3
EAN
4250808706444
Manufacturer
Granit
