Hallite - ZAS705942T714M - Hallite ZAS070C
Hallite - ZAS705942T714M - Hallite ZAS070C
Hallite - ZAS705942T714M - Hallite ZAS070C
Hallite - ZAS705942T714M - Hallite ZAS070C

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping on orders over €60

Pay Securely with

Hallite - ZAS705942T714M - Hallite ZAS070C

Hallite - ZAS705942T714M - Hallite ZAS070C

€8.98

(Excl. VAT)

Price

(Excl. VAT)

€8.98

Product Description

Elastomer seal ring Interchangeable with many different brands (Parker, KR type; Simrit, Simco 300 type; Trelleborg, Wynseal type) Very flexible and wear-resistant Low friction Good sealing capacity
Hallite

Product Details

Brand
Hallite
Equivalent AM Part Numbers

Hallite

ZAS705942T714M
Type
Piston seal
Unit
Each
Width
4,2 mm
Details
Elastomer seal ring Interchangeable with many different brands (Parker, KR type; Simrit, Simco 300 type; Trelleborg, Wynseal type) Very flexible and wear-resistant Low friction Good sealing capacity
Benefits
Negligible internal leakage compared to a PTFE standard seal Wide range of applications Long service life Low resistance Higher resistance to contamination
Material
Bronze Teflon (PTFE) Nitrile rubber [NBR]
Type code
714
Properties
The seal does not need to be recalibrated like PTFE standard seals Easy mounting
Consists of
Seal ring: polyester elastomer O-ring: NBR 70
Technical info
Maximum operating pressure: 500 bar It is recommended that a guide ring is fitted to the piston on one or both sides of the seal, e.g. type 87 or 506
Groove thickness
4,2 mm
Outside diameter
70 mm
Application range
For double-acting cylinders
Max. sliding speed
1 m/s
Ød1Inside diameter
59 mm
Max. working pressure
500 BAR
Max. working temperature
110 °C
Min. working temperature
-40 °C
Manufacturer
Hallite

Similar items you might like

  • Hallite

    Hallite - ZAS705942V - Hallite Piston Seal 70x59x4.2 Viton

    Hallite

    €18.15

  • Hallite

    Hallite - ZAS756442 - Hallite Piston Seal 75x64x4.2

    Hallite

    €7.79

  • Hallite

    Hallite - ZAS80628763 - Hallite Piston Seal 80x62.87x6.3

    Hallite

    €42.66

  • Hallite

    Hallite - ZAS8064563 - Hallite Piston Seal 80x64.5x6.3

    Hallite

    €10.46

  • Hallite

    Hallite - ZAS8064563V - Hallite Piston Seal 80x64.5x6.3 Viton

    Hallite

    €20.30

  • Hallite

    Hallite - ZAS8569563 - Hallite Piston Seal 85x69.5x6.3

    Hallite

    €11.36

  • Hallite

    Hallite - ZAS9074563 - Hallite Piston Seal 90x74.5x6.3

    Hallite

    €12.58

  • Hallite

    Hallite - ZAS9074563T764 - Hallite Piston Seal 90x74.5x6.3 T764

    Hallite

    €5.00

  • Hercules

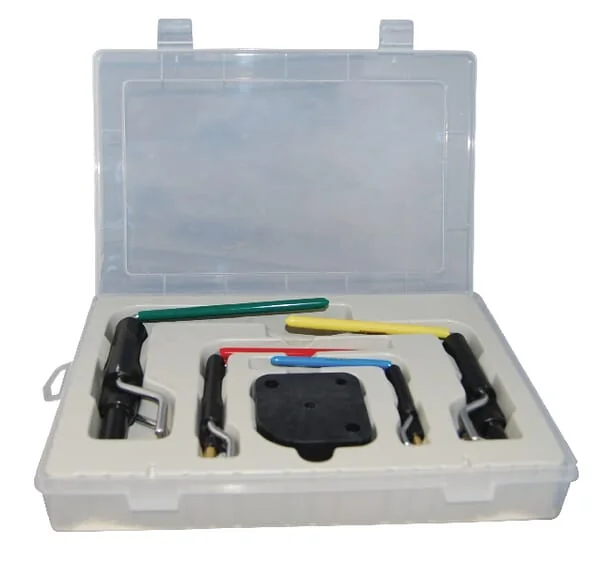

    Hercules - TW4S - Hercules Mounting Kit U-Seals
