Home
Electrical, Lighting & Batteries
Lighting
Headlights
HELLA - 1AL 015 318-151 - LED/DE-Insert, headlight, 90mm Essential L4565, 12/24V
HELLA - 1AL 015 318-151 - LED/DE-Insert, headlight, 90mm Essential L4565, 12/24V
HELLA - 1AL 015 318-151 - LED/DE-Insert, headlight, 90mm Essential L4565, 12/24V
HELLA - 1AL 015 318-151 - LED/DE-Insert, headlight, 90mm Essential L4565, 12/24V
HELLA - 1AL 015 318-151 - LED/DE-Insert, headlight, 90mm Essential L4565, 12/24V
HELLA - 1AL 015 318-151 - LED/DE-Insert, headlight, 90mm Essential L4565, 12/24V
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

HELLA - 1AL 015 318-151 - LED/DE-Insert, headlight, 90mm Essential L4565, 12/24V

HELLA - 1AL 015 318-151 - LED/DE-Insert, headlight, 90mm Essential L4565, 12/24V

€189.41

(Excl. VAT)

Price

(Excl. VAT)

€189.41

Product Description

HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The L4565 Bi-LED modules as well as the BI-Halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Claas

22528470

Deutz fahr

210052380

Krone

210052380
Plug
DEUTSCH plug

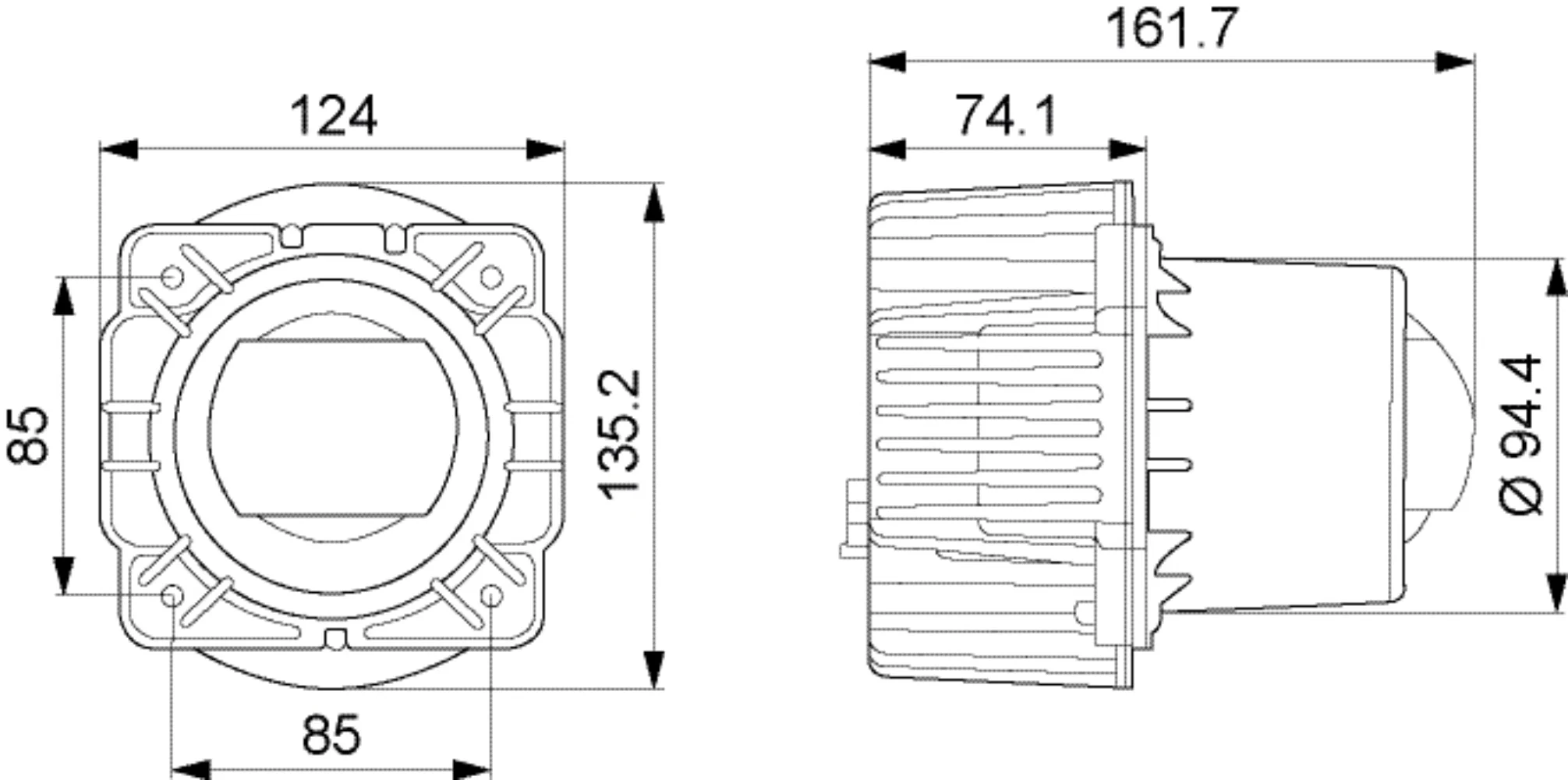

Depth
74 mm
Shape
Round
Width
124 mm
Height
135 mm
Length
135 mm
Voltage
24 V / 12 V
Diameter
94 mm
LampType
LED
Quantity
1
LensColour
Crystal clear
LightDesign
DE / LED
AssemblyNote
Assembly by qualified personnel required
MountingType
Mounting / Fitting
FasteningType
Four-point attachment
HousingColour
Black
LightFunction
With high beam (LED) / With low beam (LED)
LightFunctions
2
FittingPosition
Left / Right
IlluminatedArea
94 mm
ReferenceNumber
17.5
RegistrationType
SAE
SupplementaryInfo
Without bulb
SupplementaryInfo2
Electromagnetic Compatibility (EMC)
TrafficOrientation
For right-hand traffic
DiffusingLensMaterial
Glass
Manufacturer
HELLA
