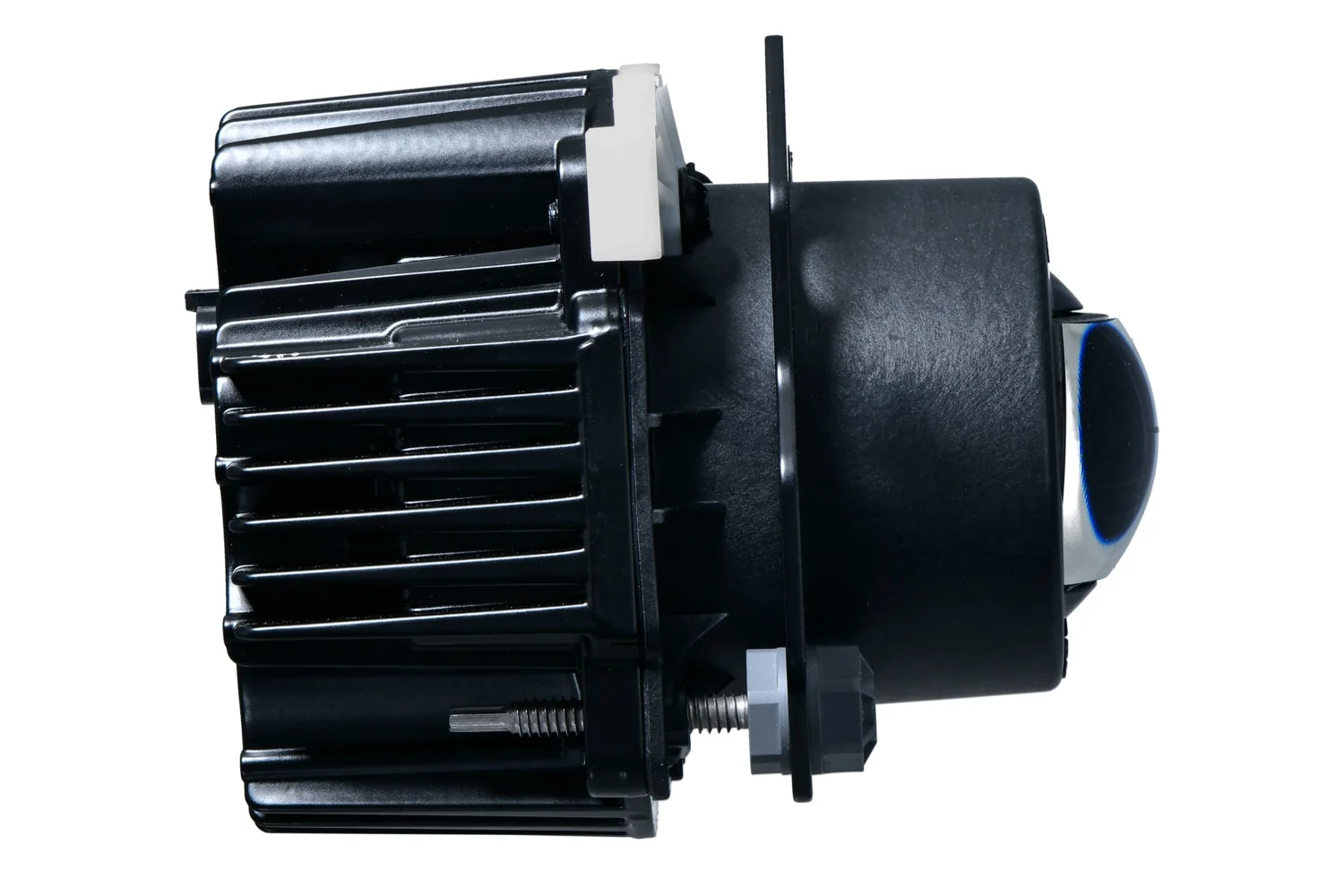

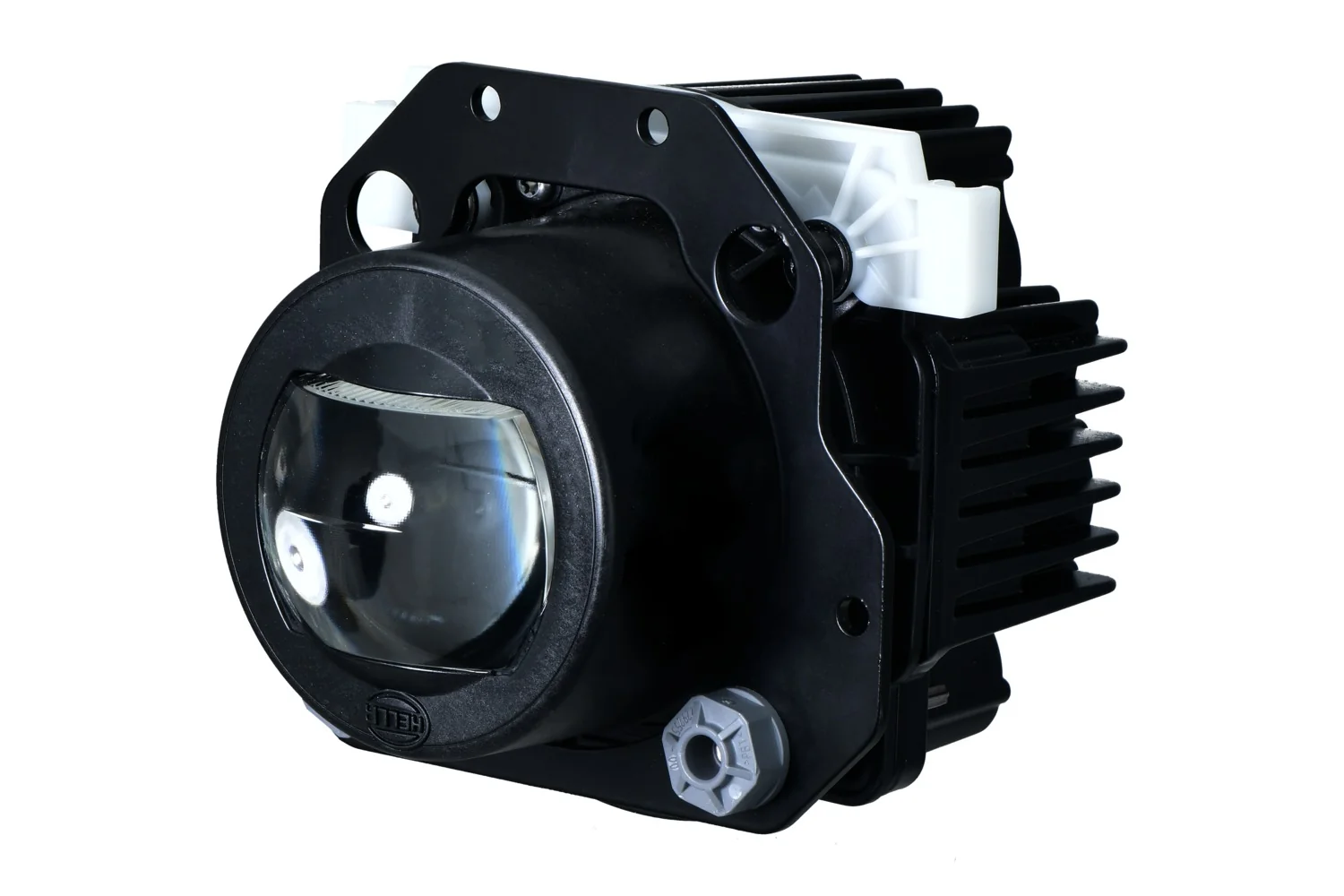

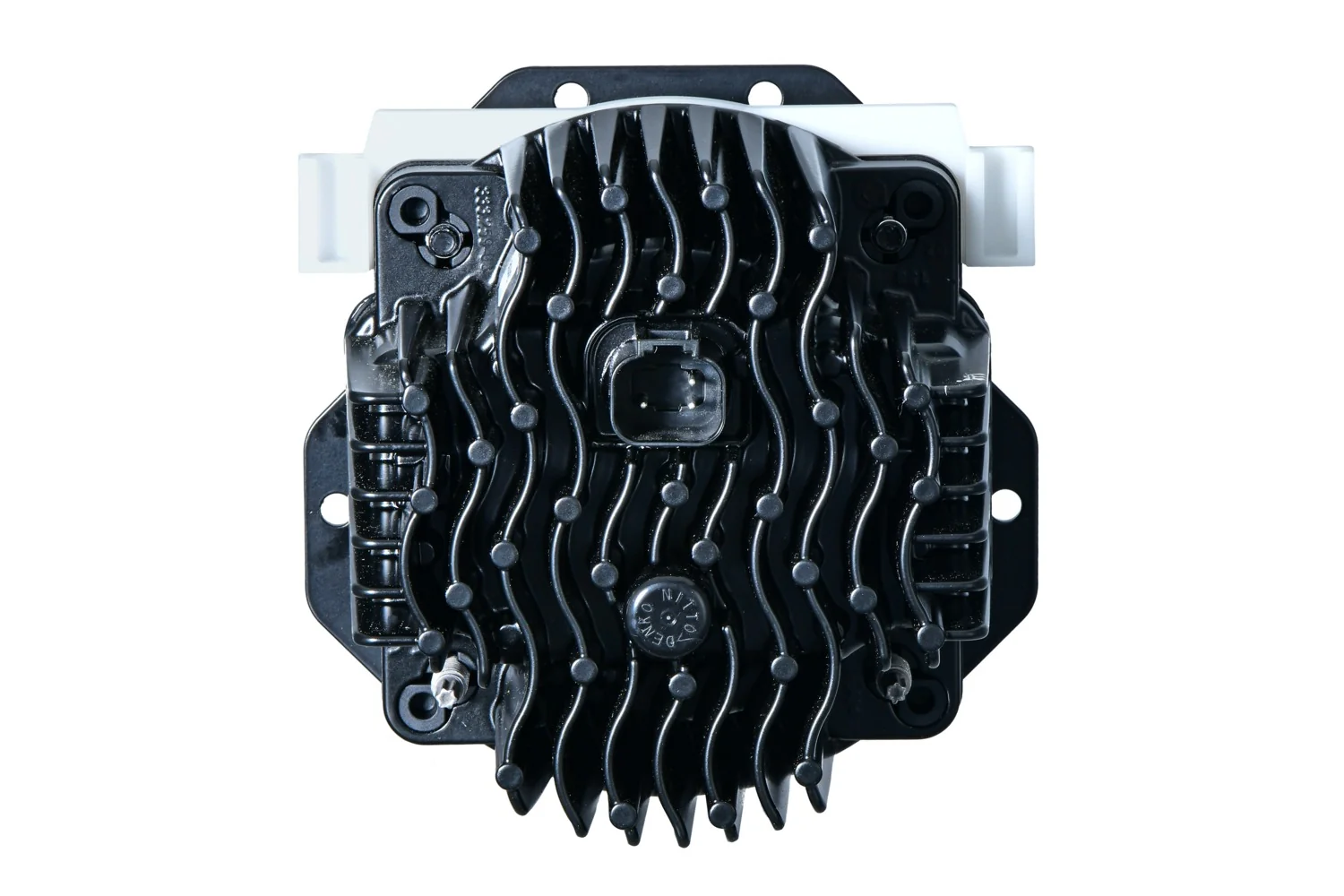

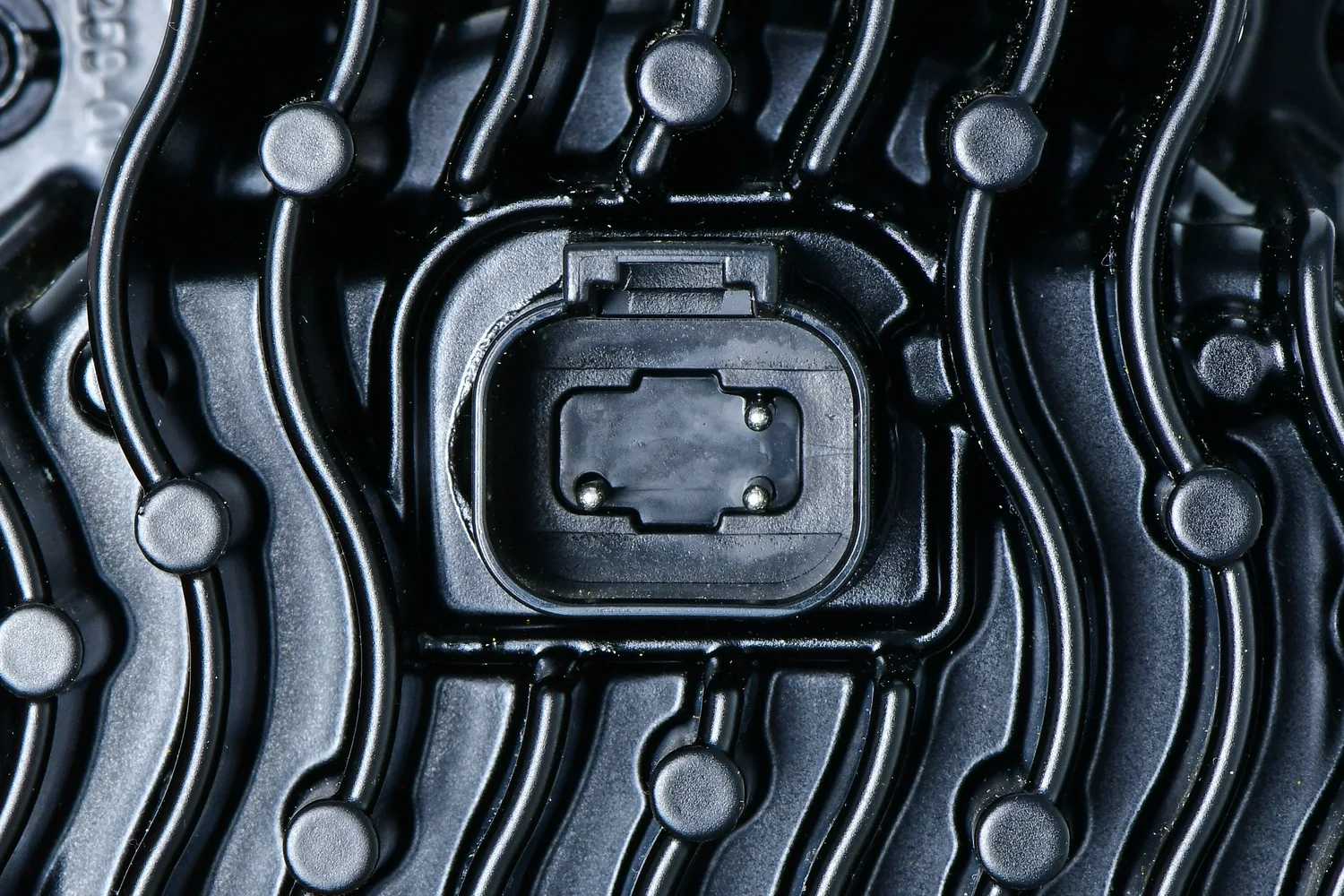

HELLA - 1AL 015 318-211 - DE/LED-Insert, headlight, 90mm Essential L4565, 12/24V
HELLA - 1AL 015 318-211 - DE/LED-Insert, headlight, 90mm Essential L4565, 12/24V
HELLA - 1AL 015 318-211 - DE/LED-Insert, headlight, 90mm Essential L4565, 12/24V
HELLA - 1AL 015 318-211 - DE/LED-Insert, headlight, 90mm Essential L4565, 12/24V
HELLA - 1AL 015 318-211 - DE/LED-Insert, headlight, 90mm Essential L4565, 12/24V
HELLA - 1AL 015 318-211 - DE/LED-Insert, headlight, 90mm Essential L4565, 12/24V
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

HELLA - 1AL 015 318-211 - DE/LED-Insert, headlight, 90mm Essential L4565, 12/24V

HELLA - 1AL 015 318-211 - DE/LED-Insert, headlight, 90mm Essential L4565, 12/24V

€225.21

(Excl. VAT)

Price

(Excl. VAT)

€225.21

Product Description

The HELLA 90 mm module headlamps stand for highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorcycle: The robust HELLA 90 mm headlamps are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, permitting a wide range of applications as well as an individual front design. Within the 90 mm module headlamp range, halogen and LED technology can be selected according to requirements, which also makes it easier to switch from halogen to LED. All modules score with their robust construction and can therefore also be used in demanding working environments. The difference between the individual series in the 90 mm range lies in the detail. The L 4060 LED modules, for example, shine with their outstanding light output and additional lighting functions. The daylight-like light color of the LED modules considerably improves visibility and concentration during night-time journeys, thus increasing safety. The Bi-LED modules L 4565 as well as the BI-Halogen modules combine low beam and high beam in a single headlight module and are therefore ideally suited for construction situations with limited space. The R 80 modules have an innovative reflector design that ensures particularly homogeneous illumination.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Depth
169 mm
Shape
Round
Voltage
12 V / 24 V
Diameter
99 mm
Lamp Type
LED
Light Design
LED / DE
Assembly Note
Assembly by qualified personnel required
Mounting Type
Fitting
Connector Type
DT
Light Function
With low beam (LED) / With high beam (LED)
Number Of Pins
3 -pin connector
Light Functions
2
Fitting Position
Right / Left
Power Consumption
35 W
Fulfils ECE Standard
R149 / R10
Left-hand/Right-hand Traffic
For right-hand traffic
Supplementary Article/Supplementary Info
With bulb / With adjuster
Supplementary Article/Supplementary Info 2
Electromagnetic Compatibility (EMC)
Manufacturer
HELLA

Similar items you might like

  • Hella

    HELLA - 2PF 959 590-357 - Clearance Light, 12/24V

    Hella

    €71.22

  • Hella

    HELLA - 2SB 013 343-237 - Rearlight, Shapeline Style, LED, 12/24V

    Hella

    €38.65

  • Hella

    HELLA - 6PW 014 657-201 - Rain Sensor

    Hella

    €28.77

  • Hella

    HELLA - 8HG 358 176-371 - Bracket Set, auxiliary headlight, Black Magic Tough Slim Lightbar

    Hella

    €8.37

  • Hella

    HELLA - 9GS 157 608-007 - Hose

    Hella

    €78.69

  • Hella

    HELLA - 1GB 996 098-031 - LED-Worklight, FMS Base, 12/24V

    Hella

    €63.41

  • Hella

    HELLA - 2VP 340 967-011 - Rearlight, LED, 24V

    Hella

    €219.97

  • Hella

    HELLA - 8EA 015 642-491 - Starter, 12V, 3kW, for e.g. CASE IH CS 68

    Hella

    €183.91

  • Hella

    HELLA - 8EA 015 642-501 - Starter, 12V, 3.1kW

    Hella

    €193.21

  • Hella

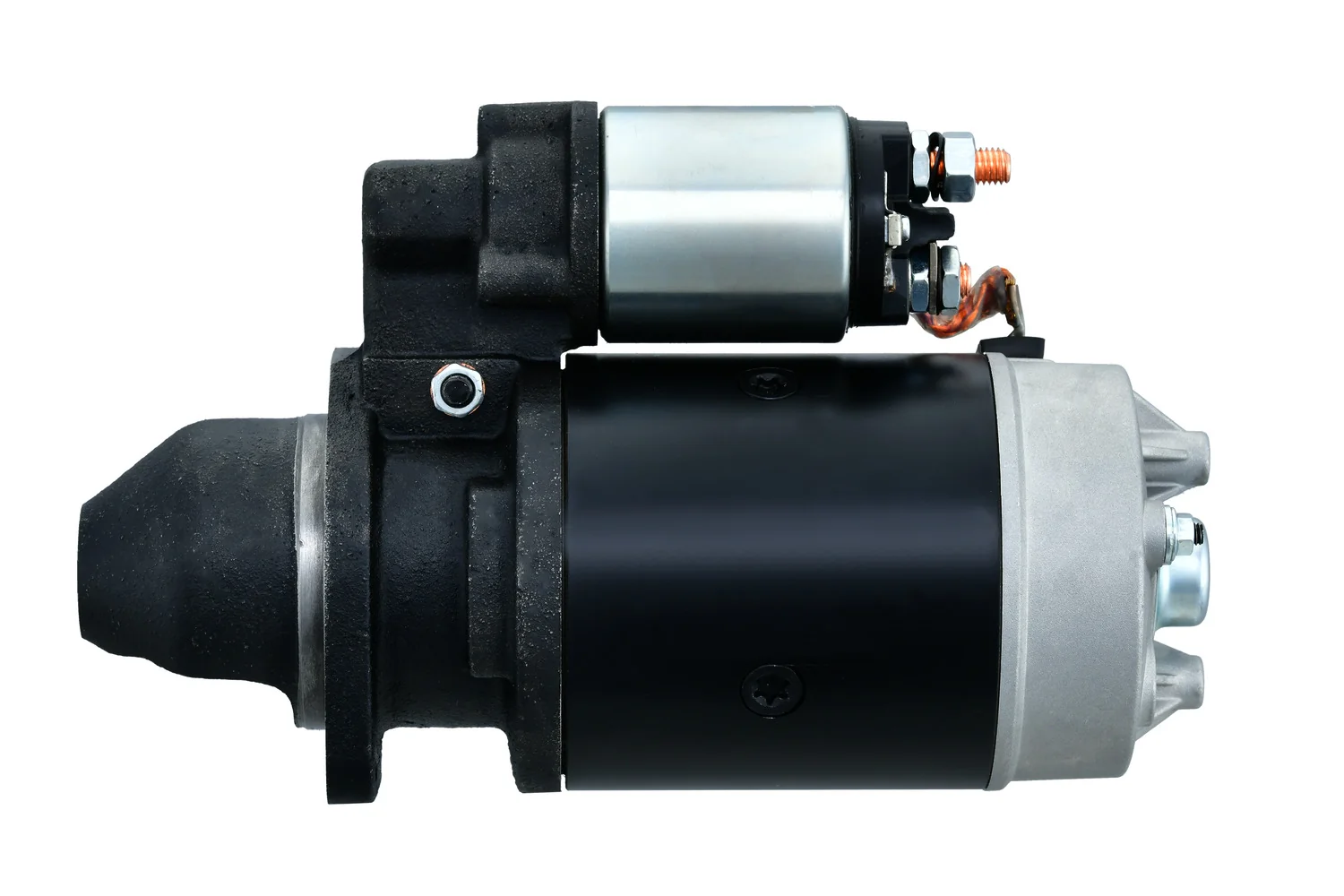

    HELLA - 8EA 015 642-511 - Starter, 12V, 2.7kW
